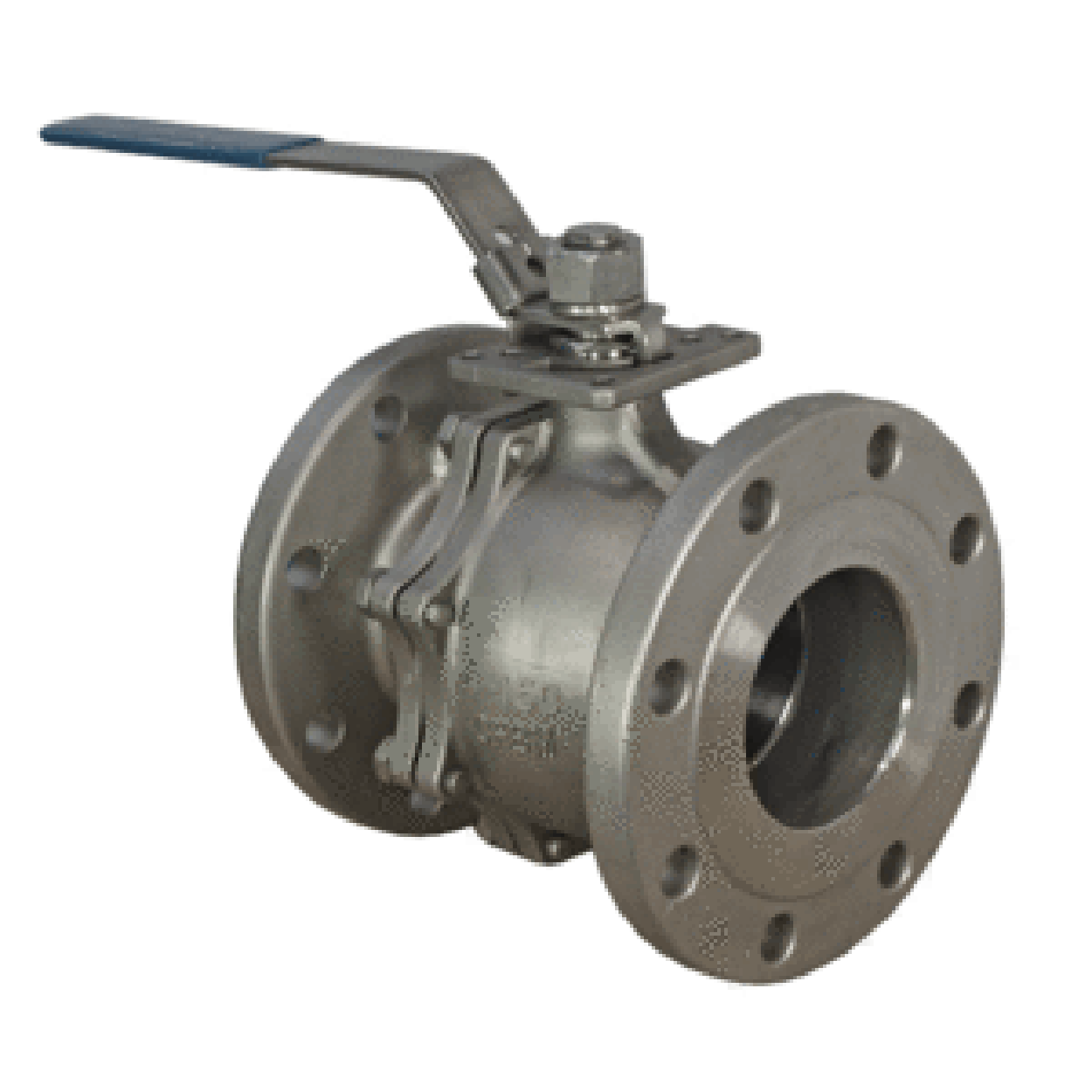

Stainless Steel Two Piece Flanged Ball Valve ANSI150

This two-piece stainless steel 316 ball valve offers reliable flow control and robust performance for industrial and commercial piping systems. Its full-bore design ensures maximum flow efficiency with minimal pressure drop, making it ideal for applications where maintaining optimal throughput is critical.

The two-piece body allows easy maintenance and servicing without removing the entire valve from the pipeline, reducing downtime and maintenance costs. Class 150 flanged ends provide secure, leak-resistant connections compatible with ANSI-standard piping systems. The precision-engineered stainless steel ball and PTFE seats deliver smooth quarter-turn operation and tight sealing. Lever operation allows safe manual control, while the durable stainless steel construction ensures excellent corrosion resistance and long-term reliability across water, air, oil, gas, and chemical applications.

SIZE	L	H	D1	D2	D3	B	n-F
15	108	85	89	60.5	35	11.1	4 - 16
20	117	90	98	70	43	11.1	4 - 16
25	127	100	108	79.5	51	11.1	4 - 16
32	140	105	117	89	64	12.7	4 - 16
40	165	110	127	98.5	73	14.3	4 - 19
50	178	120	152	120.5	92	15.9	4 - 19
65	190	160	178	139.5	105	17.5	4 - 19
80	203	170	190	152.5	127	19.1	4 - 19
100	229	185	229	190.5	157	23.9	8 - 19
125	356	260	254	216	186	23.9	8 - 22
150	394	280	278	241.5	216	25.4	8 - 22
200	457	340	343	298.5	270	28.6	8 - 22

NO.	PART NAME	MATERIAL
1	BODY	CF8M
2	CAP	CF8M
3	BALL	CF8M
4	STEM	316SS
5	SEAT	PTFE
6	GASKET	PTFE
7	THRUST WASHER	PTFE
8	PACKING	PTFE
9	GALAND	304SS
10	STOPPER	304SS
11	SNAP RING	304SS
12	GLAND BOLT	304SS
13	STUD BOLT	304SS
14	SET NUT	304SS
15	HANDLE	WCB

Technical requirements

Design and manufacture per ANSI B16.34
Face-to-face dimension per ANSI B16.10
Flange connection dimension per ANSI B16.5
Blow-out proof stem / full port
Lever operated or gear operated
