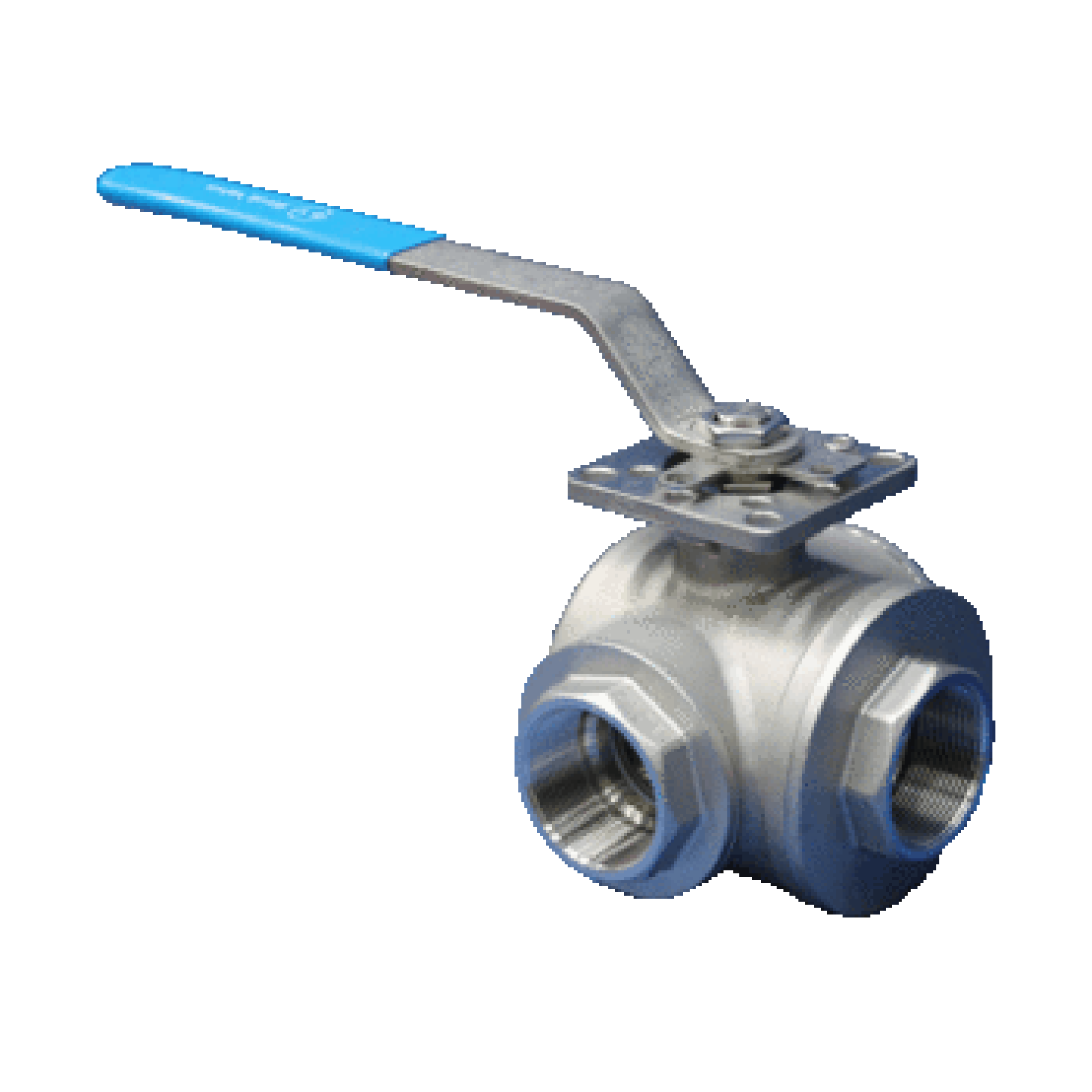

Stainless Steel Three Way L Port Ball Valve with Mounting Pad

$88.00

Sale Sold out

Taxes included.

SKU:BV-3WAYL-MP-008

Size 8mm (¼″) 10mm (⅜″) 15mm (½″) 20mm (¾″) 25mm (1″) 32mm (1¼″) 40mm (1½″) 50mm (2″)

Size: ⅜" to 2"
Body: ASTM A351 - CF8M
Seat: PTFE
Pressure Rating: 1000 PSI (69 BAR) W.O.G
Actuation: Lockable lever
Thread / Ends: Pipe thread in accordance with BS 21:1973
Flow Configuration: L-Port

Stainless Steel Three-Way, L Port, Full Bore, BSP Threaded Ends, ISO 316 Ball Valve

This stainless steel three-way L-port ball valve with ISO mounting pad provides reliable flow control and flexible piping configuration for industrial and commercial systems. Its full-bore design ensures minimal pressure drop and efficient flow management.

Constructed from corrosion-resistant stainless steel 316 with BSP threaded ends, the valve offers secure, leak-free integration into pipelines. The L-port design allows fluid to be diverted or mixed between two outlets, while the ISO 5211 mounting pad enables direct installation of pneumatic or electric actuators for automation. Precision-engineered ball and PTFE seats deliver smooth quarter-turn operation and tight sealing, with safe manual operation via the lever handle when automation is not required.

Stainless Steel Three Way L Port Ball Valve with Mounting Pad

SIZE	A	B	C	d1	d2	E	F	G	H	K	L	PORT	TORQUE (Nm)
8	37	9.5	130	6	6	62	36	42	9	35	72	11	12
10	37	9.5	130	6	6	62	36	42	9	35	72	12	12
15	42	10.5	130	6	6	64	36	42	9	40.5	84.5	15	15
20	48.5	14	165	6	7.1	82	42	50	11	49.5	100	20	18
25	55.5	14	165	6	7.1	89	42	50	11	56.5	113	25	33
32	63	17	205	7.1	9.2	98	50	70	14	62	125.5	32	60
40	73.5	17	205	7.1	9.2	108	50	70	14	73.5	150	38	75
50	92	21	325	9.2	11.4	140	70	102	17	87	174	50	84

ITEM	PART NAME	MATERIALS
1	END CAP	A351 GR CF8M
2	GASKET	TFM 1600
3	BODY	A351 GR CF8M
4	BALL	SS 316
5	SEATS	TFM 1600
6	STEM	SS 316
7	THRUST WASHER	TFM 1600
8	O-RING	VITON
9	STEM PACKING	TFM 1600
10	GLAND	SS 304
11	BELLEVILLE WASHER	SS 301
12	STEM NUT	SS 304
13	NUT STOP	SS 304
14	SPACE WASHER	SS 304
15	STOPPER PLATE	SS 304
16	HANDLE NUT	SS 304
17	HANDLE	SS 304
18	HANDLE COVER	PLASTIC
19	STOP PIN	SS 304
20	NUT	SS 304
21	PIN	SS 316

SELF ADJUSTING STEM PACKING
4 PIECE BALL SEATS
BLOW-OUT PROOF STEM
100% AIR TESTED UNDER WATER AT 80-100 psi
ISO 5211 MOUNTING PAD
