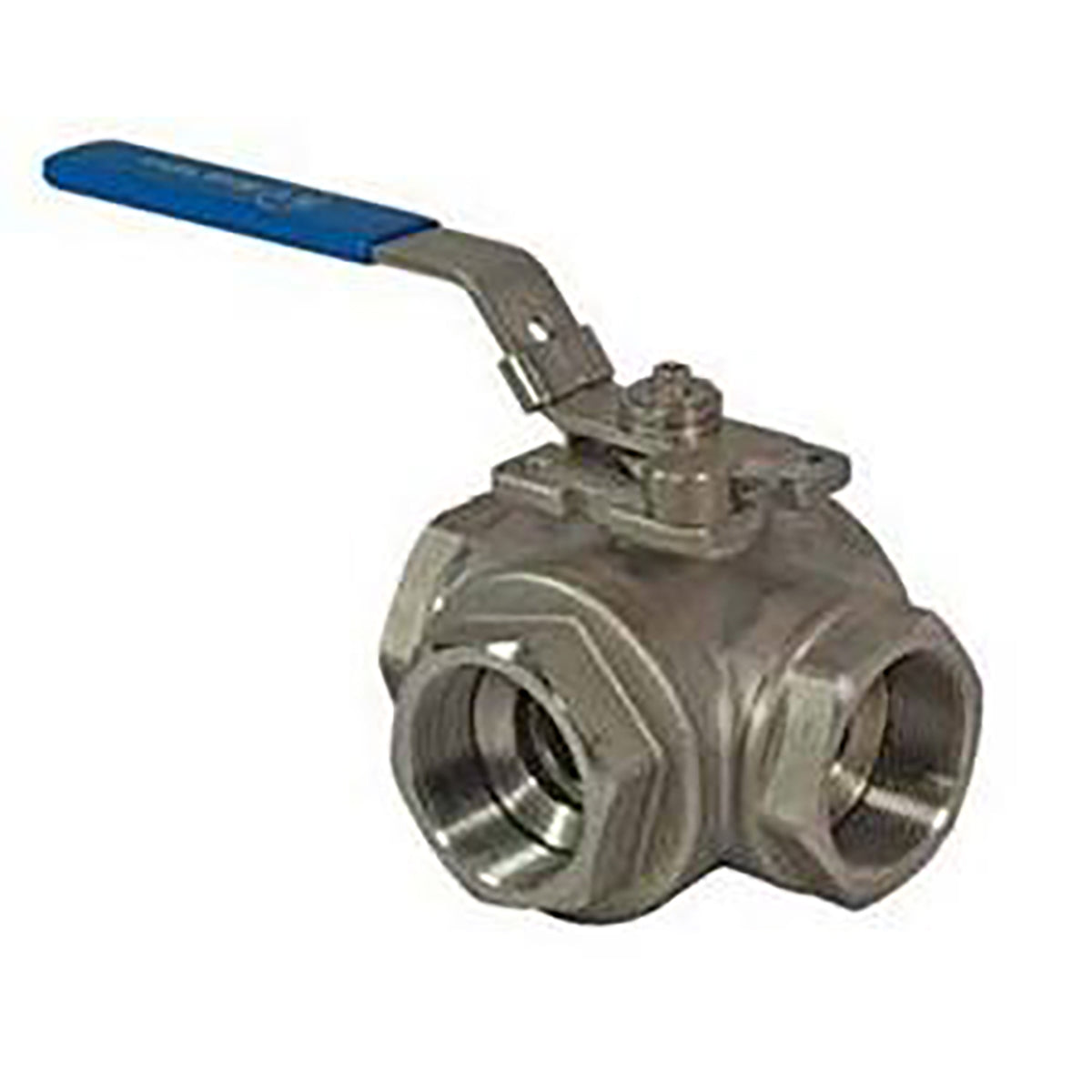

Stainless Steel Three Way L Port Ball Valve

$66.00

Sale Sold out

Taxes included.

SKU:BV-3WAYL-008

Size 8mm (¼″) 10mm (⅜″) 15mm (½″) 20mm (¾″) 25mm (1″) 32mm (1¼″) 40mm (1½″) 50mm (2″)

Size: ⅜" to 3"
Body: ASTM A351 - CF8M
Seat: PTFE
Pressure Rating: 1000 PSI (69 BAR) W.O.G
Actuation: Lockable Lever
Thread / Ends: Pipe thread in accordance with BS 21:1973
Flow Configuration: L-Port

Stainless Steel Three-Way Ball Valve, L Port, Reduced Bore, BSP Threaded Ends, Lockable Lever Operated

This stainless steel three-way L-port ball valve provides reliable flow control and versatile piping configuration for industrial and commercial systems. Its reduced-bore design ensures compact installation while maintaining efficient flow control.

Constructed from durable stainless steel with BSP threaded ends, the valve offers secure, leak-resistant integration into pipelines. The L-port design allows fluid to be diverted or mixed between two outlets, providing flexible flow management. The precision-engineered ball and PTFE seats ensure smooth quarter-turn operation and tight sealing. A lockable lever handle allows safe manual operation and prevents accidental movement, making it suitable for water, air, oil, gas, and a wide range of industrial applications.

SIZES	DN	H	W	D_F	D_x	L	A	B	C	D	PCD/M	N
8NB	11	62	98	32	29.4	64.15	10.2	6	12.5	9	42	M5
10NB	11	62	98	32	29.4	64.15	10.2	6	12.5	9	42	M5
15NB	12.7	69	130	36.5	29.4	75.3	10.2	6	12.5	9	42	M5
20NB	16	82	133	41.4	35.4	83.6	16	6	15	11	50	M6
25NB	20	89	149	50	35.4	100.8	18	7.5	15	11	50	M6
32NB	25	96	149	57	35.4	119.4	18	7.5	15	11	50	M6
40NB	32	96	205	62	49.5	130.0	19	8.5	20	14	70	M8
50NB	38.1	106	205	73.4	49.5	148.3	19	8.5	20	14	70	M8

NO	PART NAME	MATERIAL	QTY
1	BODY	ASTM A315 CF8M	1
2	END CAP	ASTM A351 CF8M	2
3	BALL SEAT	REINFORCED PTFE	4
4	BALL	ASTM A351 CF8M	1
5	STEM	AISI 316	1
6	END SEALS	REINFORCED PTFE	2
7	THRUST WASHER	REINFORCED PTFE	1
8	GLAND	AISI 304	1
9	HANDLE	AISI 304	1
10	HANDLE WASHER	AISI 304	1
11	WASHER	AISI 304	1
12	HANDLE NUT	AISI 304	1
13	HANDLE SLEEVE	PLASTIC	1
14	END CAP	ASTM A351 CF8M	1
15	STEM PACKING	REINFORCED PTFE	2
16	END SEALS	REINFORCED PTFE	1
17	LOCK	AISI 304	1
18	STOP RING	AISI 304	1
