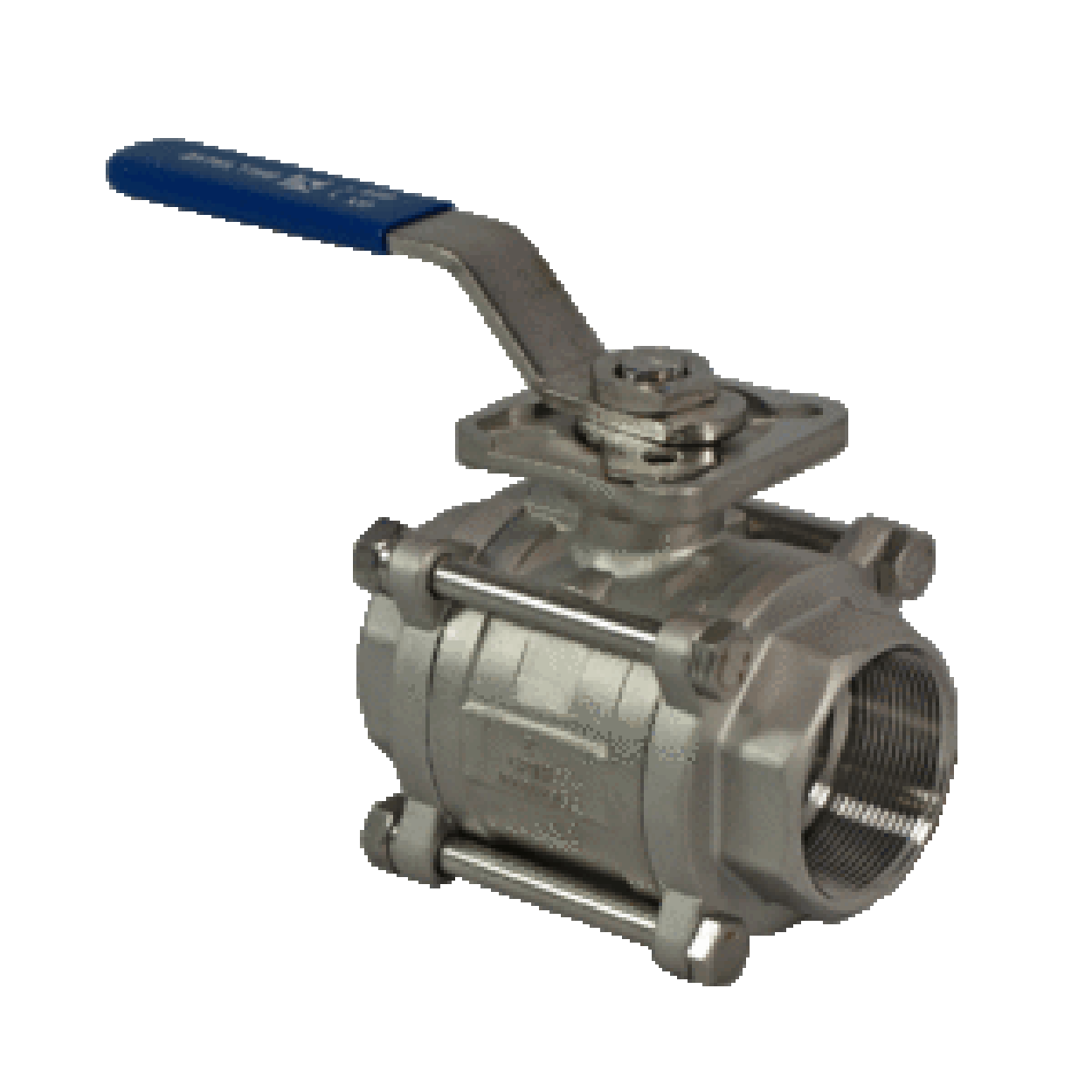

Stainless Steel Three Piece Socket Weld Ball Valve

Size: 1/4" to 2" Socket Weld
Body: Stainless Steel&nbsp;
Seat: Reinforced PTFE

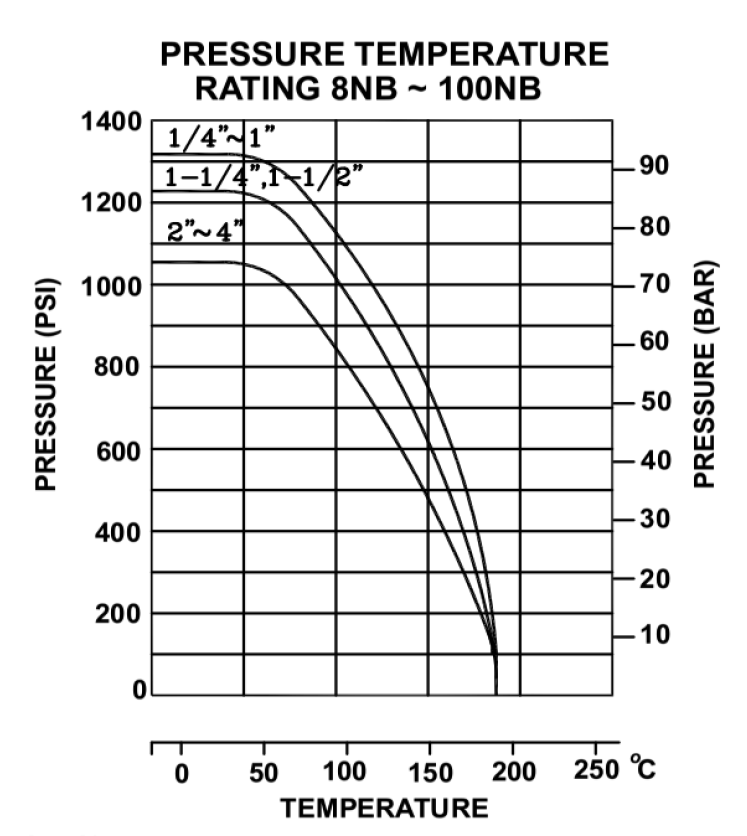

Pressure Rating: 63 BAR
Temperature Range: -20°C to 180°C
Actuation: Lockable Lever

This three-piece stainless steel ball valve delivers dependable flow control for demanding industrial applications. Its full-bore design provides unrestricted flow with minimal pressure drop, ensuring maximum efficiency in pipeline systems. The three-piece body allows quick disassembly and servicing without removing the entire valve, reducing downtime and simplifying maintenance.

Built from high-quality stainless steel, the valve offers outstanding resistance to corrosion, high temperatures, and aggressive chemicals. Socket weld ends provide a strong, leak-resistant connection ideal for high-pressure systems. With a precision-machined ball and PTFE seats, it ensures smooth quarter-turn operation, tight sealing, and long-term reliability. Well-suited for industries such as chemical processing, oil and gas, water treatment, and power generation.

SIZE	DN	H	W	L	S	Cv Factor	Weight kg
8	11.6	51	95	54	14.1	6.6	0.4
10	12.7	51	95	54	17.6	7.9	0.4
15	15	53	95	61.5	21.7	11.2	0.58
20	20	59.5	110	71	27.2	21	0.75
25	25	73	135	83.5	33.9	34	1.08
32	32	79	135	97	42.6	57	1.85
40	38	90.5	165	110.5	48.7	80	2.45
50	50	99	165	129	61.1	148	3.7
65	65	127	215	171.5	76.9	265	7.4
80	80	136	215	200	89.8	415	11
100	100	172	325	252	115.4	780	22

NO	PART NAME	MATERIAL
1	BODY	ASTM A351 CF8M
2	CAP	ASTM A351 CF8M
3	BALL	ASTM A351 CF8M
4	SEAT	15% R-PTFE
5	GASKET	15% R-PTFE
6	STEM	AISI 316
7	THRUST WASHER	PTFE
8	STEM PACKING	PTFE
9	GLAND NUT	AISI 304
10	HANDLE	AISI 304
11	SPRING WASHER	AISI 304
12	STEM NUT	AISI 304
13	PLASTIC COVER	PLASTIC
14	LOCK DEVICE	AISI 304
15	BOLT	AISI 304
16	SPRING WASHER	AISI 304
17	HEX NUT	AISI 304
