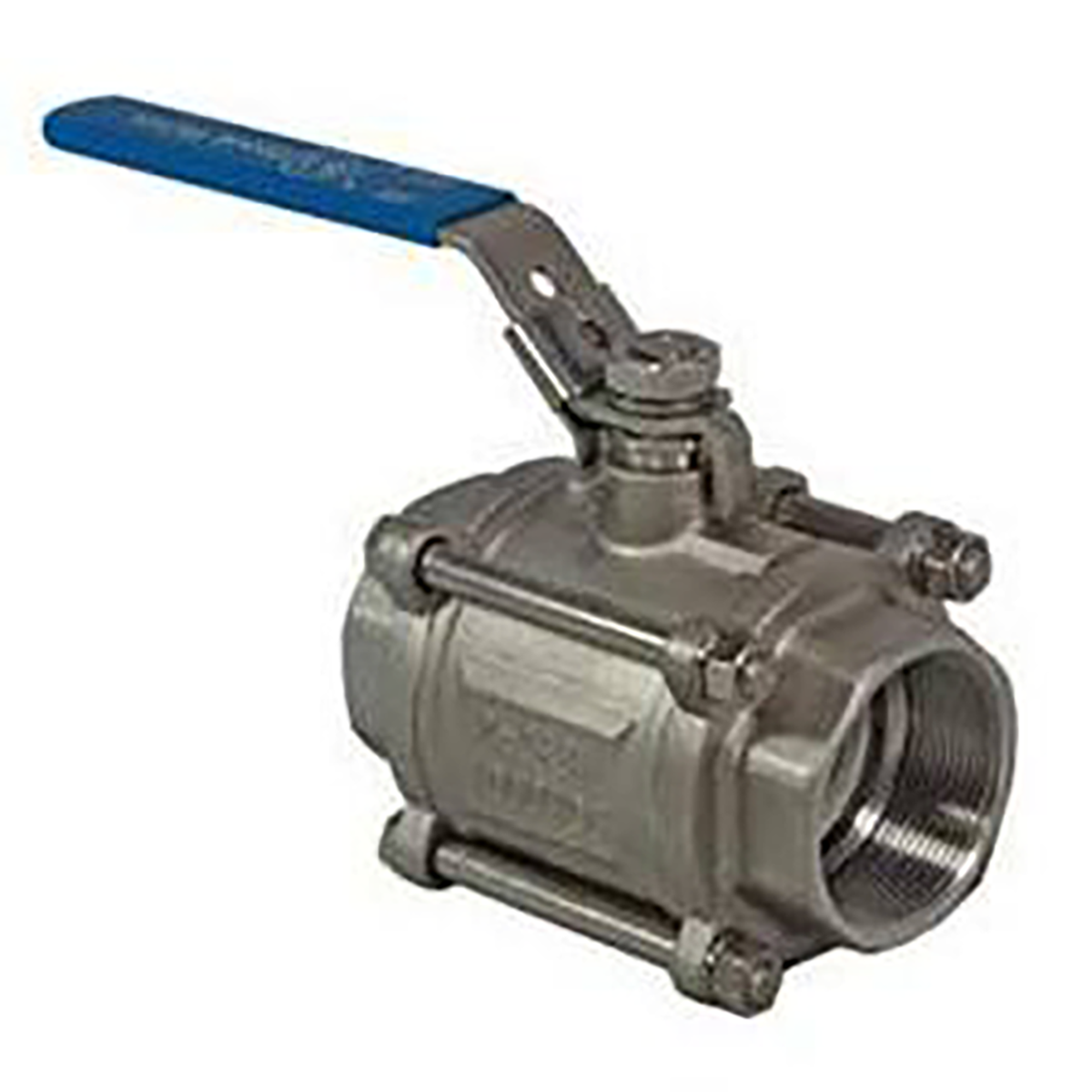

Stainless Steel Three Piece NPT Ball Valve
Stainless Steel Three Piece NPT Ball Valve
SKU:BV-3-NPT-008
Couldn't load pickup availability
- Size: 1/4" to 2" NPT
- Body: Stainless Steel
- Seat: Reinforced PTFE
- Pressure Rating: 63 BAR
- Temperature Range: -20°C to 180°C
- Actuation: Lockable Lever or Gear Box
Share

This three-piece stainless steel ball valve with NPT threaded ends offers a reliable, durable, and versatile solution for shut-off and flow control. Its three-piece body design allows quick maintenance or replacement of internal components without removing the entire valve from the pipeline—minimizing downtime and extending service life.
The precision-machined stainless steel body, full-bore floating ball, and PTFE seats ensure a secure seal and smooth quarter-turn operation for efficient isolation. NPT threaded end connections provide secure, leak-free installation into piping systems. Built from corrosion-resistant stainless steel, this valve is suitable for water, air, oil, gas, and a wide range of industrial and commercial applications. The lever handle allows safe manual operation, with optional automation available for added flexibility.

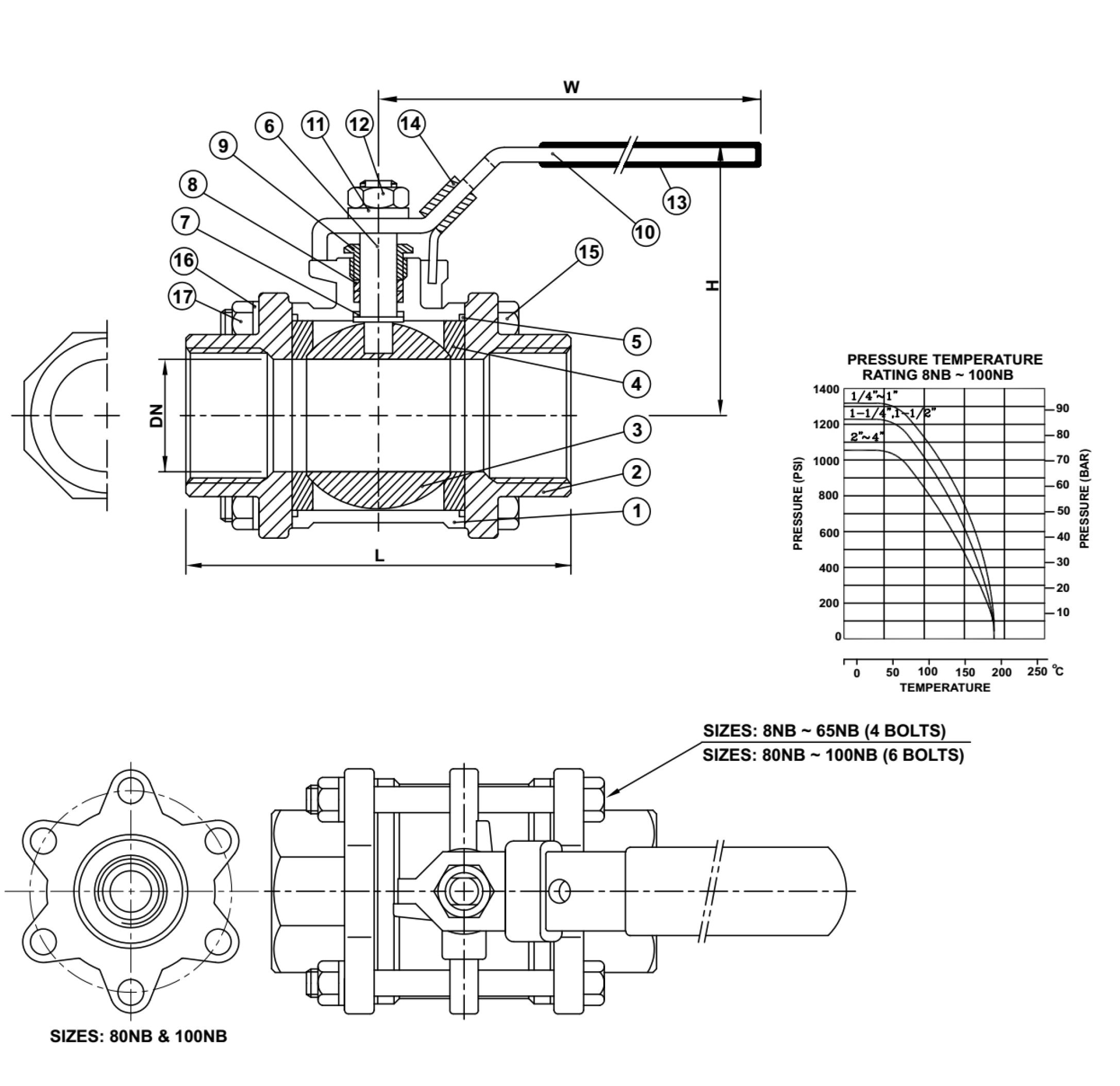

| SIZE | DN | H | W | L | S | Cv Factor | Weight kg |
|---|---|---|---|---|---|---|---|
| 8 | 11.6 | 51 | 95 | 54 | 14.1 | 6.6 | 0.4 |
| 10 | 12.7 | 51 | 95 | 54 | 17.6 | 7.9 | 0.4 |
| 15 | 15 | 53 | 95 | 61.5 | 21.7 | 11.2 | 0.58 |
| 20 | 20 | 59.5 | 110 | 71 | 27.2 | 21 | 0.75 |
| 25 | 25 | 73 | 135 | 83.5 | 33.9 | 34 | 1.08 |
| 32 | 32 | 79 | 135 | 97 | 42.6 | 57 | 1.85 |
| 40 | 38 | 90.5 | 165 | 110.5 | 48.7 | 80 | 2.45 |
| 50 | 50 | 99 | 165 | 129 | 61.1 | 148 | 3.7 |
| 65 | 65 | 127 | 215 | 171.5 | 76.9 | 265 | 7.4 |
| 80 | 80 | 136 | 215 | 200 | 89.8 | 415 | 11 |
| 100 | 100 | 172 | 325 | 252 | 115.4 | 780 | 22 |

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351 CF8M |
| 2 | CAP | ASTM A351 CF8M |
| 3 | BALL | ASTM A351 CF8M |
| 4 | SEAT | 15% R-PTFE |
| 5 | GASKET | 15% R-PTFE |
| 6 | STEM | AISI 316 |
| 7 | THRUST WASHER | PTFE |
| 8 | STEM PACKING | PTFE |
| 9 | GLAND NUT | AISI 304 |
| 10 | HANDLE | AISI 304 |
| 11 | SPRING WASHER | AISI 304 |
| 12 | STEM NUT | AISI 304 |
| 13 | PLASTIC COVER | PLASTIC |
| 14 | LOCK DEVICE | AISI 304 |
| 15 | BOLT | AISI 304 |
| 16 | SPRING WASHER | AISI 304 |
| 17 | HEX NUT | AISI 304 |
