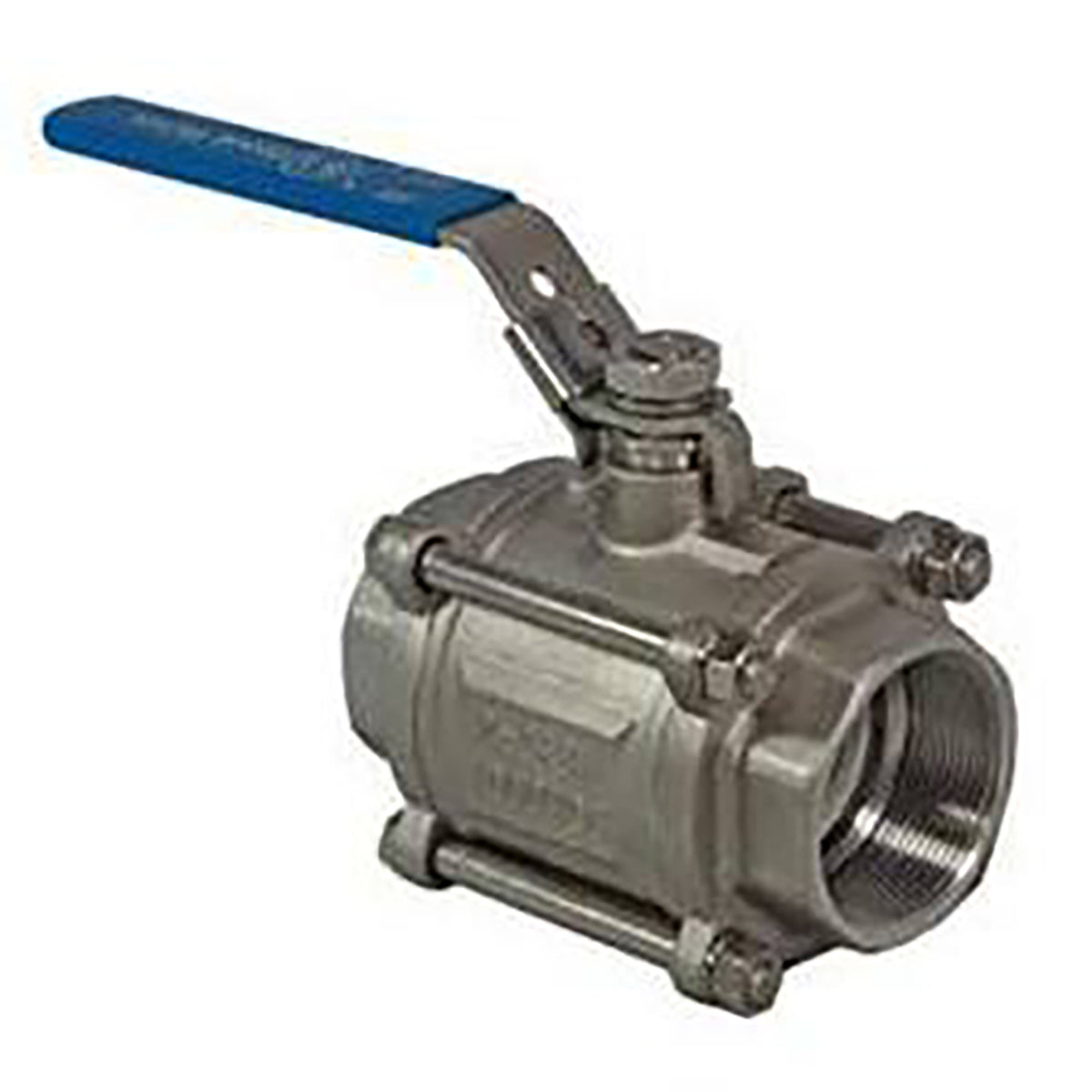

Stainless Steel Three Piece BSP Ball Valve

Size: 1/4" to 4" BSP
Body: Stainless Steel&amp;nbsp;
Seat: Reinforced PTFE
Pressure Rating: 63 BAR
Temperature Range: -20°C to 180°C
Actuation: Lockable Lever or Gear Box

This Stainless Steel Three-Piece, Full Bore, BSP Threaded Ends Ball Valve is a versatile and robust solution for reliable shut-off and precise flow control. Its three-piece body design allows for easy maintenance and replacement of internal components without removing the entire valve from the pipeline, ensuring long service life and minimal downtime. The precision-machined stainless steel body, combined with a full-bore floating ball and PTFE seats, provides a tight seal and smooth quarter-turn operation for fast and efficient isolation.

Featuring BSP threaded end connections, this valve enables straightforward installation and secure integration into pipelines. The durable stainless steel construction delivers excellent corrosion resistance, making it suitable for water, air, oil, gas, and a wide range of industrial and commercial systems. The lever handle allows safe manual operation, with the option to automate if required, offering both flexibility and reliable performance.

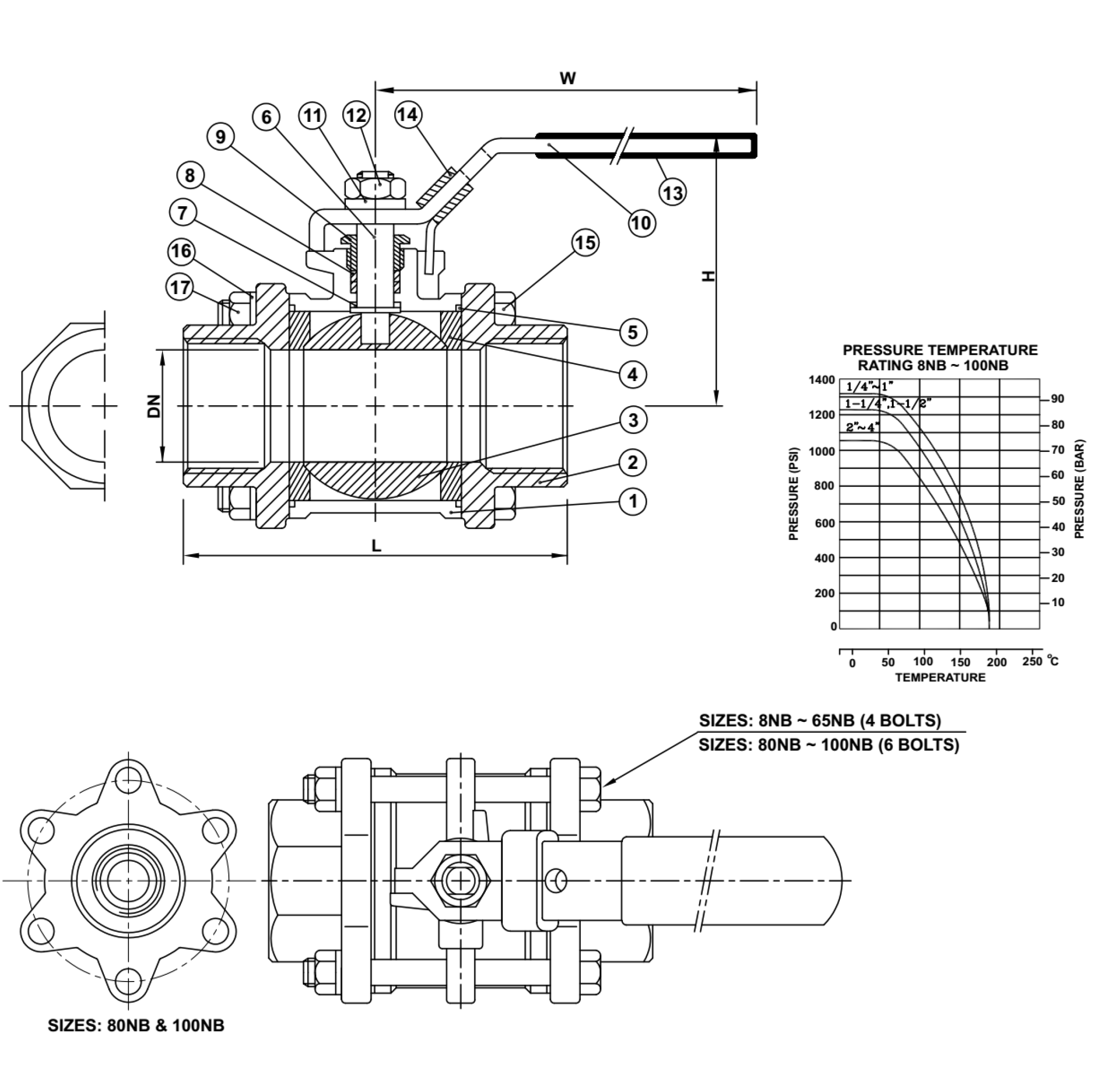

SIZE	DN	H	W	L	S	Cv Factor	Weight kg
8	11.6	51	95	54	14.1	6.6	0.4
10	12.7	51	95	54	17.6	7.9	0.4
15	15	53	95	61.5	21.7	11.2	0.58
20	20	59.5	110	71	27.2	21	0.75
25	25	73	135	83.5	33.9	34	1.08
32	32	79	135	97	42.6	57	1.85
40	38	90.5	165	110.5	48.7	80	2.45
50	50	99	165	129	61.1	148	3.7
65	65	127	215	171.5	76.9	265	7.4
80	80	136	215	200	89.8	415	11
100	100	172	325	252	115.4	780	22

NO	PART NAME	MATERIAL
1	BODY	ASTM A351 CF8M
2	CAP	ASTM A351 CF8M
3	BALL	ASTM A351 CF8M
4	SEAT	15% R-PTFE
5	GASKET	15% R-PTFE
6	STEM	AISI 316
7	THRUST WASHER	PTFE
8	STEM PACKING	PTFE
9	GLAND NUT	AISI 304
10	HANDLE	AISI 304
11	SPRING WASHER	AISI 304
12	STEM NUT	AISI 304
13	PLASTIC COVER	PLASTIC
14	LOCK DEVICE	AISI 304
15	BOLT	AISI 304
16	SPRING WASHER	AISI 304
17	HEX NUT	AISI 304
