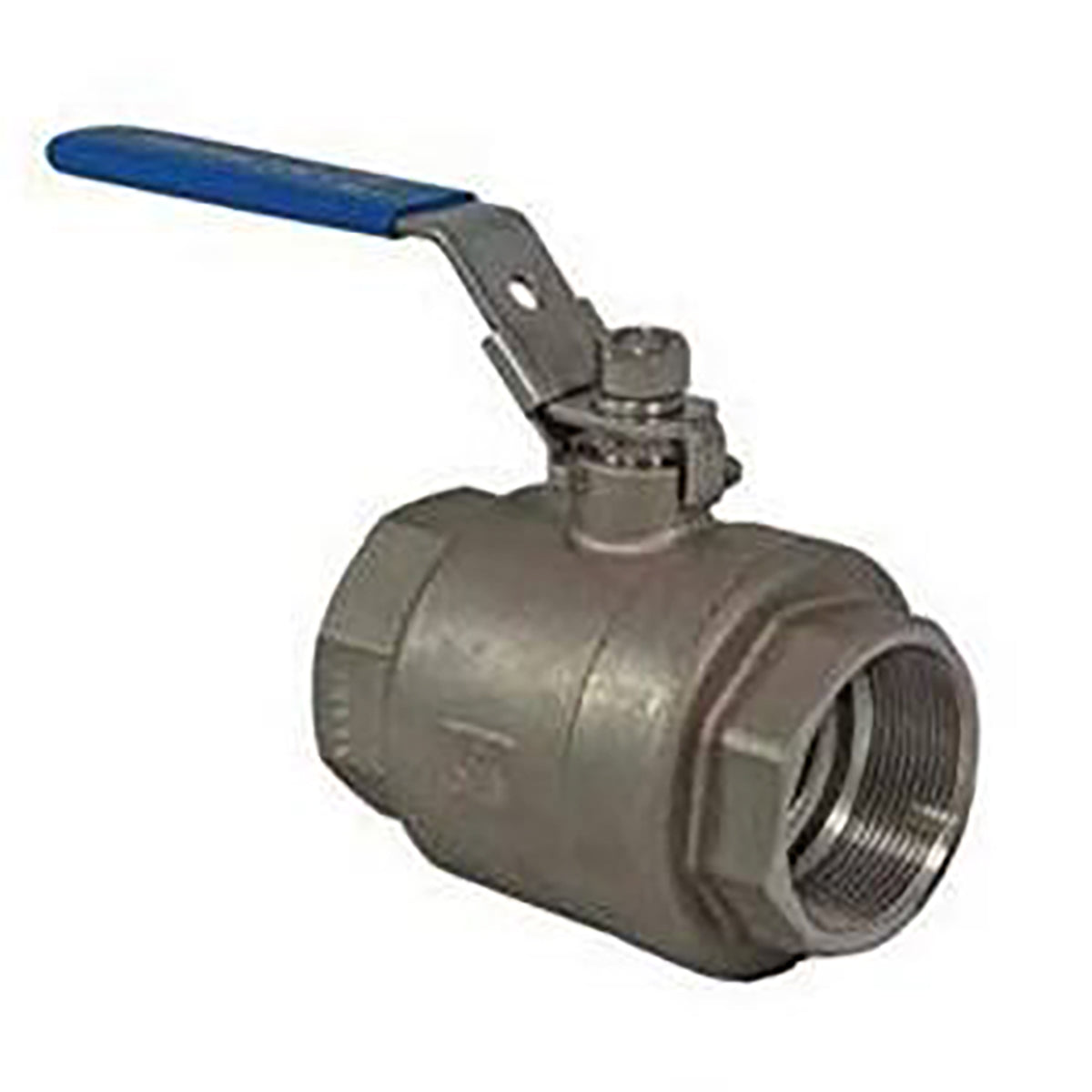

SS 316 Lever Ball Valve 2-piece Female BSP Full Bore

This two-piece, full-bore stainless steel ball valve features BSP threaded connections, providing a reliable and durable solution for controlling fluid flow in industrial, chemical, and general-purpose applications. Constructed from high-quality stainless steel, the valve ensures excellent corrosion resistance and long service life. The full-bore design allows for maximum flow efficiency, minimising pressure drop across the valve. Its two-piece construction facilitates easy maintenance and cleaning without removing the entire valve from the pipeline. Ideal for applications requiring robust performance and precision control, this valve is suitable for a wide range of liquids and gases.

SIZE	A	B	d	S	L	WEIGHT (kg)
8	49.8	40	11.4	20	97	0.33
10	49.8	40	12.5	20	97	0.33
15	60.3	45	15	25	97	0.34
20	68	48	20	31.5	115	0.6
25	77.4	56	25	39	134	1.02
32	90.1	60	32	48	144	1.57
40	103	75	38	55	155	2.28
50	122.8	87	50	67	170	3.7
65	149.5	105	65	86	222	7.1
80	170	120	76	100	222	11.68
100	222	160	94	130	268	23

NO.	PARTS	MATERIAL
1	CAP	ASTM A351 CF8M
2	BODY	ASTM A351 CF8M
3	BALL	AISI 316
4	SEAT	PTFE
5	JOINT GASKET	PTFE
6	STEM PACKING	PTFE
7	THRUST WASHER	PTFE
8	STEM	AISI 316
9	GLAND NUT	AISI 304
10	HANDLE	AISI 304
11	SPRING WASHER	AISI 304
12	STEM NUT	AISI 304
13	PLASTIC COVER	PLASTIC
14	LOCK DEVICE	AISI 304

Pressure Rating : 1000 PSI W.O.G.
Full Bore
Screwed Ends BSP
Lockable Lever
