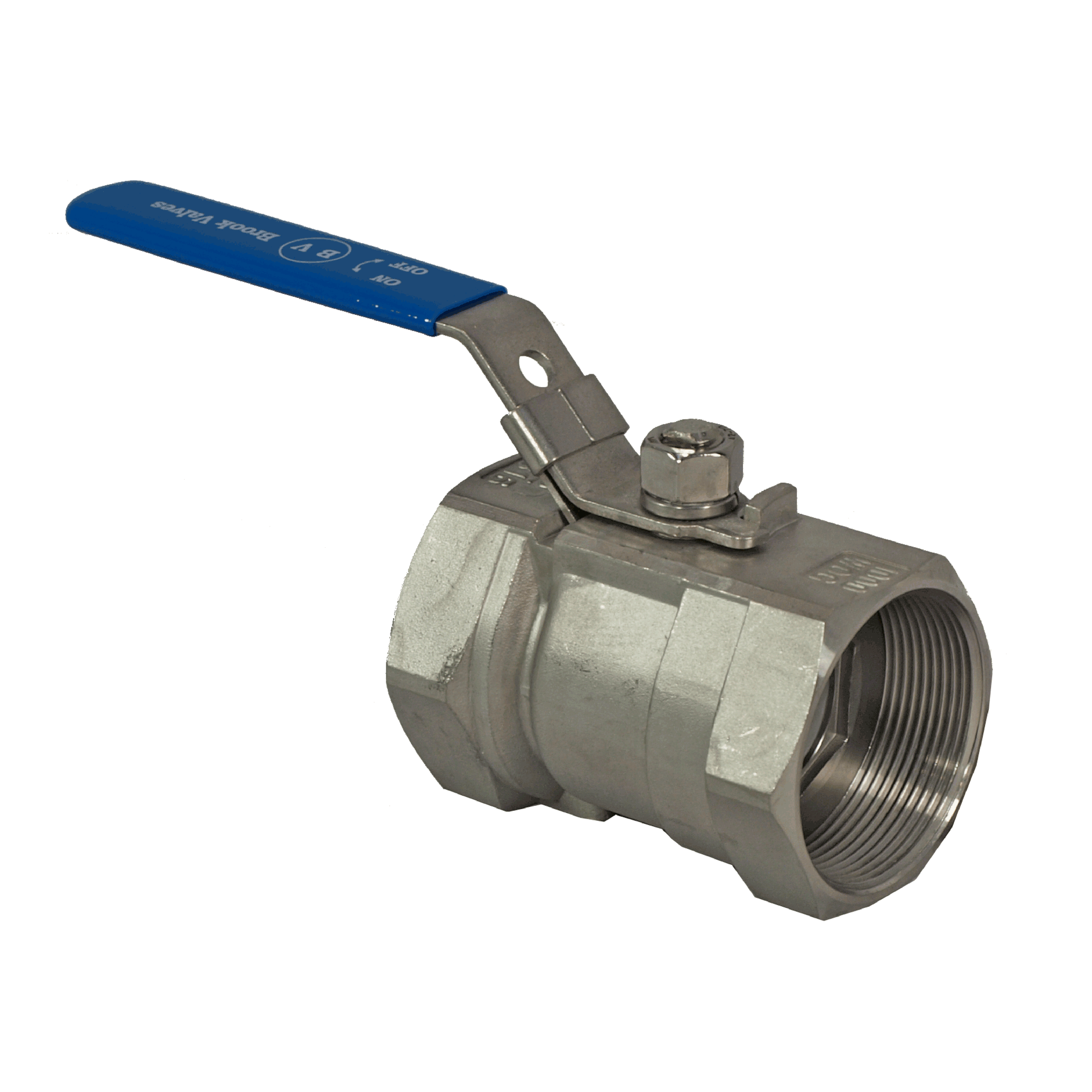

Stainless Steel 316 Lever Operated Ball Valve 1-piece Female BSP Thread Reduced Bore General Purpose

$13.53

Sale Sold out

Taxes included.

SKU:BV-1-BSP-008

Size 8mm (¼″) 10mm (⅜″) 15mm (½″) 20mm (¾″) 25mm (1″) 32mm (1¼″) 40mm (1½″) 50mm (2″)

Sizes: ¼" to 2"
Body: 1-piece 316 stainless steel, investment cast
Seat: PTFE
Ends: BSPT threaded, reduced bore
Actuation: Lockable lever handle, blowout-proof stem
Pressure Rating: 1000 PSI WOG
Temperature Range: -20°C to 200°C

A one-piece stainless steel ball valve is a compact and cost-effective solution for reliable shut-off and flow control. Its single-piece body construction eliminates potential leak points, providing strength, durability, and long service life. The precision-machined stainless steel body, combined with a floating ball and PTFE seats, ensures a tight seal and smooth quarter-turn operation for quick and efficient isolation.

Designed with BSP threaded end connections, this valve offers easy installation and secure pipeline integration. Its compact design makes it ideal for applications where space is limited, while the stainless steel construction provides excellent resistance to corrosion, making it suitable for water, air, oil, gas, and a wide range of industrial and commercial systems. The lever handle allows safe manual operation, with the option to automate if required.

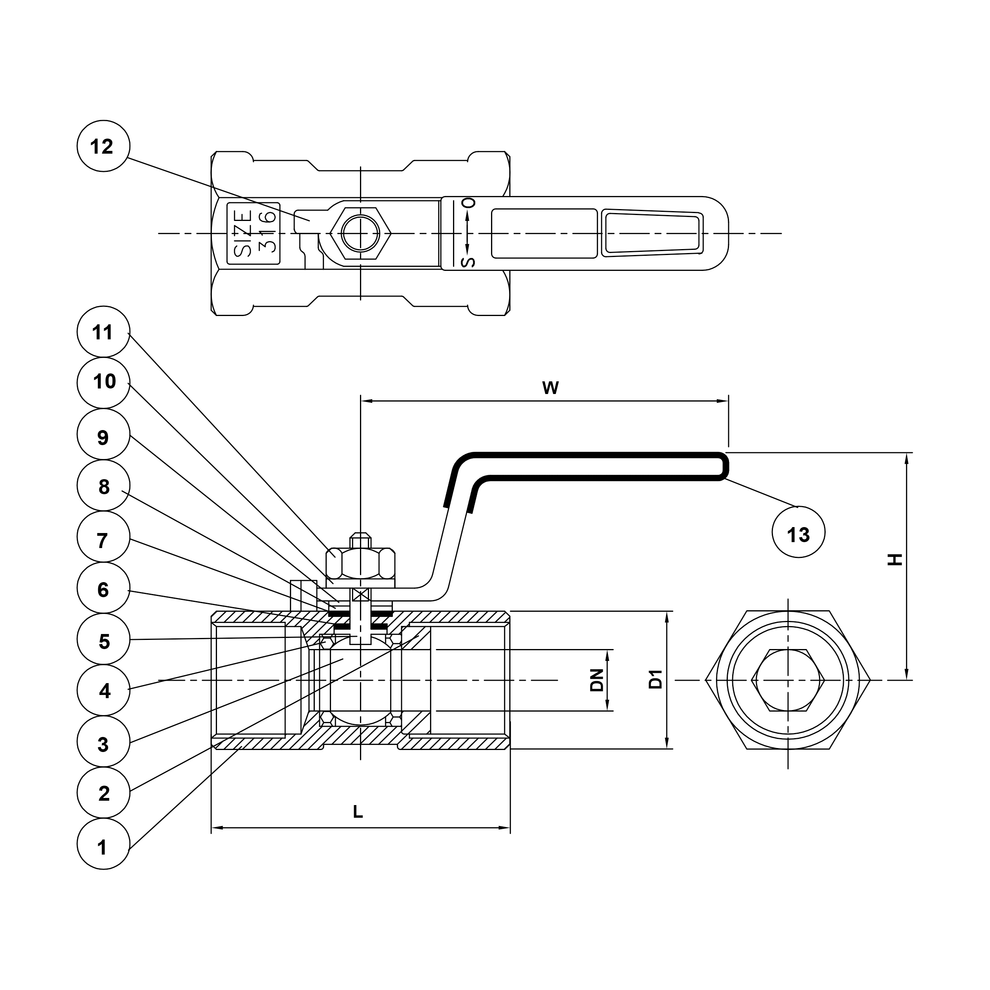

SIZE	DN	D1	W	H	L
8	5	17	69	36.5	39
10	7.2	21	79	37.5	44
15	9.2	25	110	40	56.5
20	12.5	31.5	108	45.3	59
25	15	38	112	48	71
32	20	48	112	53	78
40	25	53	157	60.5	83
50	32	64	155.5	67.5	100

NO	PART NAME	MATERIAL
1	BODY	ASTM A351 CF8M
2	INSERT	ASTM A351 CF8M
3	BALL	AISI 316
4	SEAT	PTFE
5	STEM	AISI 316
6	THRUST WASHER	PTFE
7	STEM WASHER	PTFE
8	GLAND WASHER	AISI 304
9	GLAND WASHER	AISI 304
10	SPRING WASHER	AISI 304
11	NUT	AISI 304
12	HANDLE	AISI 304
13	HANDLE SLEEVE	PLASTIC
