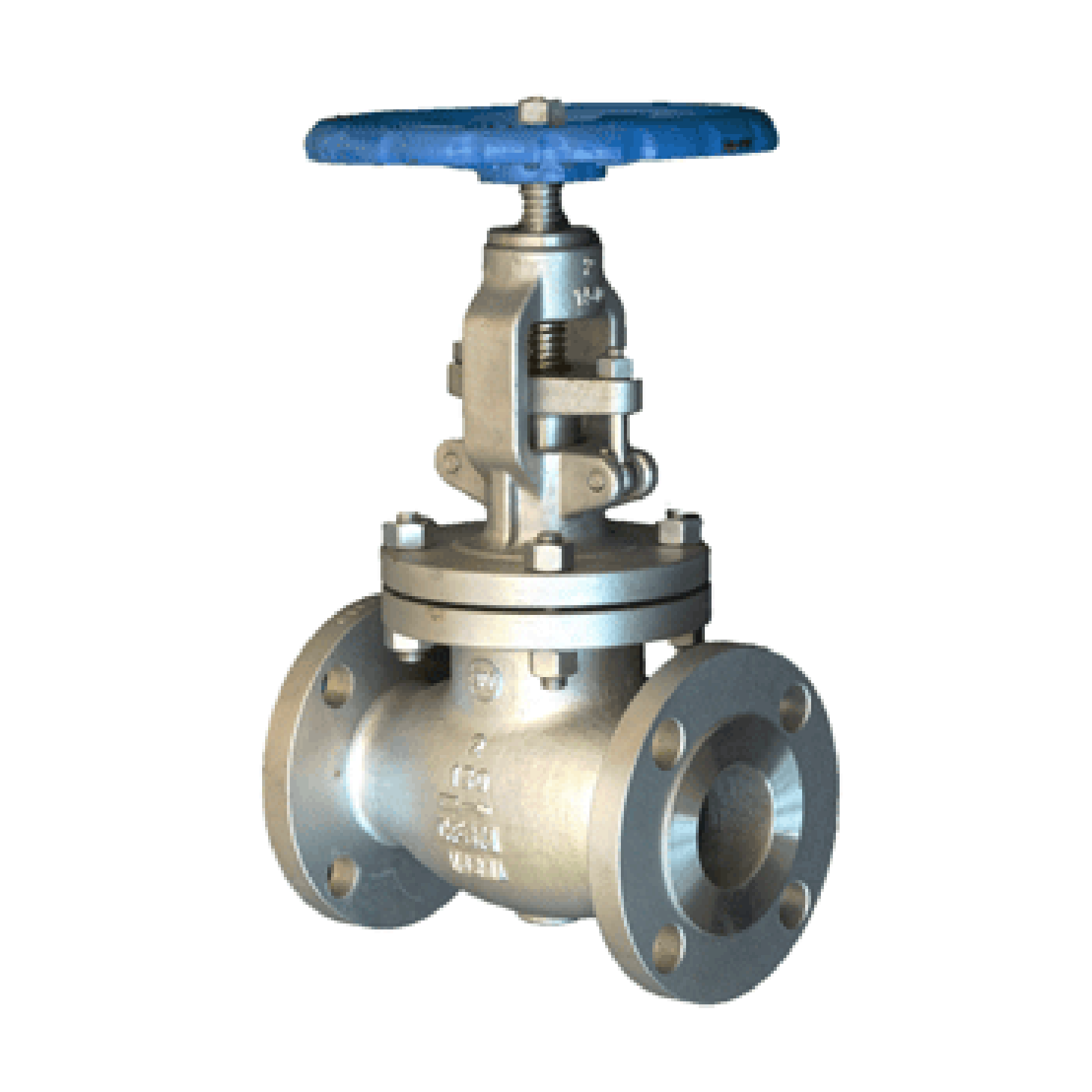

Stainless Steel Globe Valve OS&Y Class 300, CF8M, Hard-Faced Seats
Stainless Steel Globe Valve OS&Y Class 300, CF8M, Hard-Faced Seats
SKU:GLV-300-SS-015
Couldn't load pickup availability
Size Range: 15mm to 300mm Material: ASTM A351 CF8M Stainless Steel Body Seat: Hard Faced Stem: Stainless Steel Gasket & Packing: Graphite Flange Standard: ANSI B16.5 Class 300 Face-to-Face: ANSI B16.10 Design & Manufacture Standard: API 600 / API 6D Operation: Handwheel Operated (1"–8"), Gear Operated (10" and above)
Share
Engineered for durability and precision, the Stainless Steel Globe Valve OS&Y Class 300 offers superior control and long-lasting performance in demanding environments. Constructed from high-quality ASTM A351 CF8M stainless steel, this valve ensures exceptional corrosion resistance and strength. The outside screw and yoke (OS&Y) design provides clear visual indication of valve position, while hard-faced seats deliver extended service life even under high-pressure and high-temperature conditions.
With graphite gaskets and packing for optimal sealing and flanged ends to ANSI B16.5 Class 300, this valve meets API 600 / API 6D standards for safety and reliability. Handwheel operation is available for sizes up to 8", and gear operation for 10" and above — making it ideal for applications in oil & gas, chemical processing, and power generation industries.
