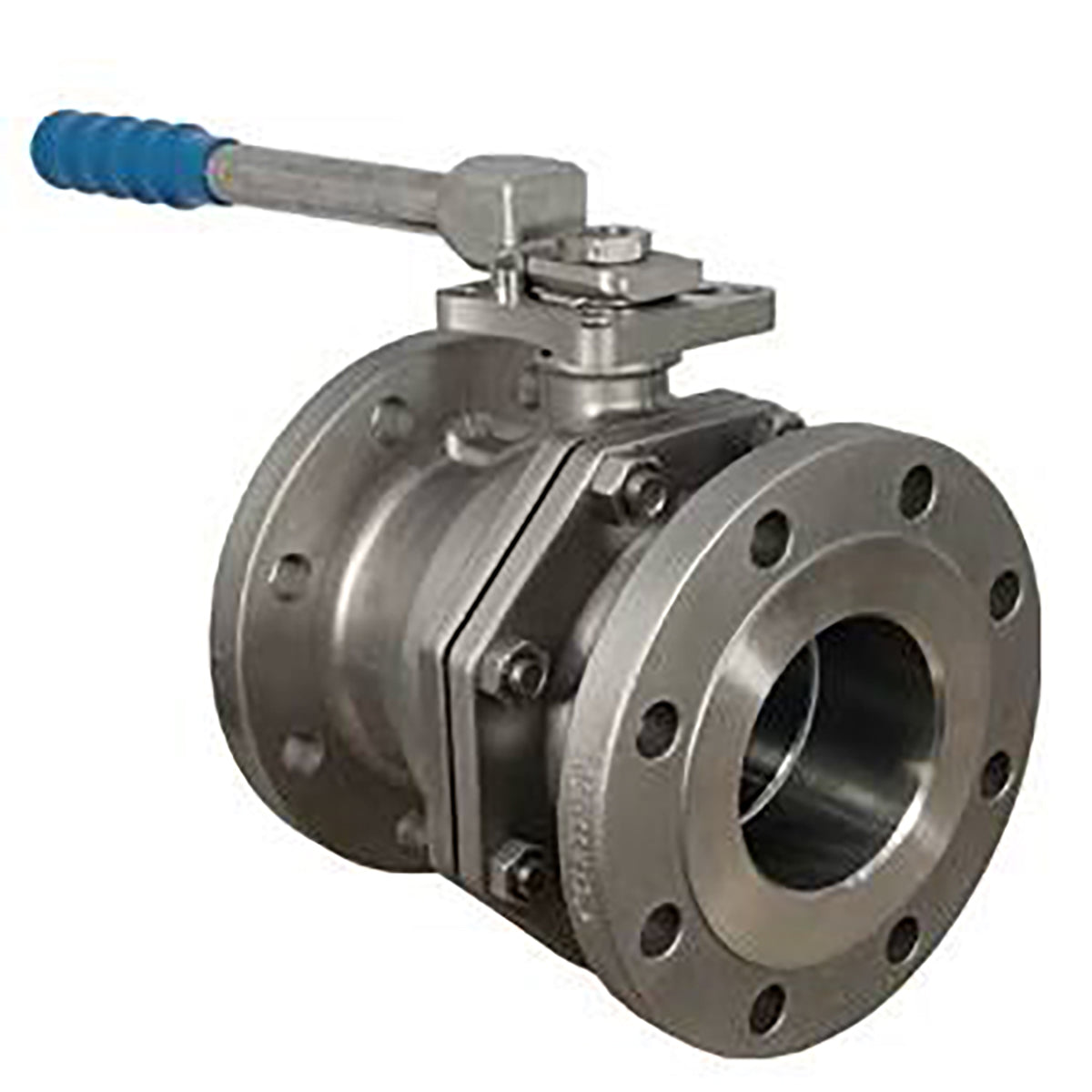

Stainless Steel Flanged Ball Valve ANSI150 with Mounting Pad

This two-piece stainless steel 316 ball valve combines reliable flow control with the versatility of an ISO mounting pad for actuator installation. Its full-bore design ensures minimal pressure drop and maximum flow efficiency, making it ideal for demanding industrial and commercial applications.

The two-piece body allows easy maintenance and servicing without removing the valve from the pipeline, reducing downtime and operational costs. Class 150 flanged ends provide secure, leak-resistant connections compatible with ANSI-standard piping systems. The precision-engineered ball and PTFE seats deliver smooth quarter-turn operation and tight sealing. The lever handle enables safe manual operation, while the ISO 5211 mounting pad allows direct installation of pneumatic or electric actuators, offering flexibility for automated or manual systems. Durable stainless steel construction ensures excellent corrosion resistance and long-term reliability across water, air, oil, gas, and chemical applications.

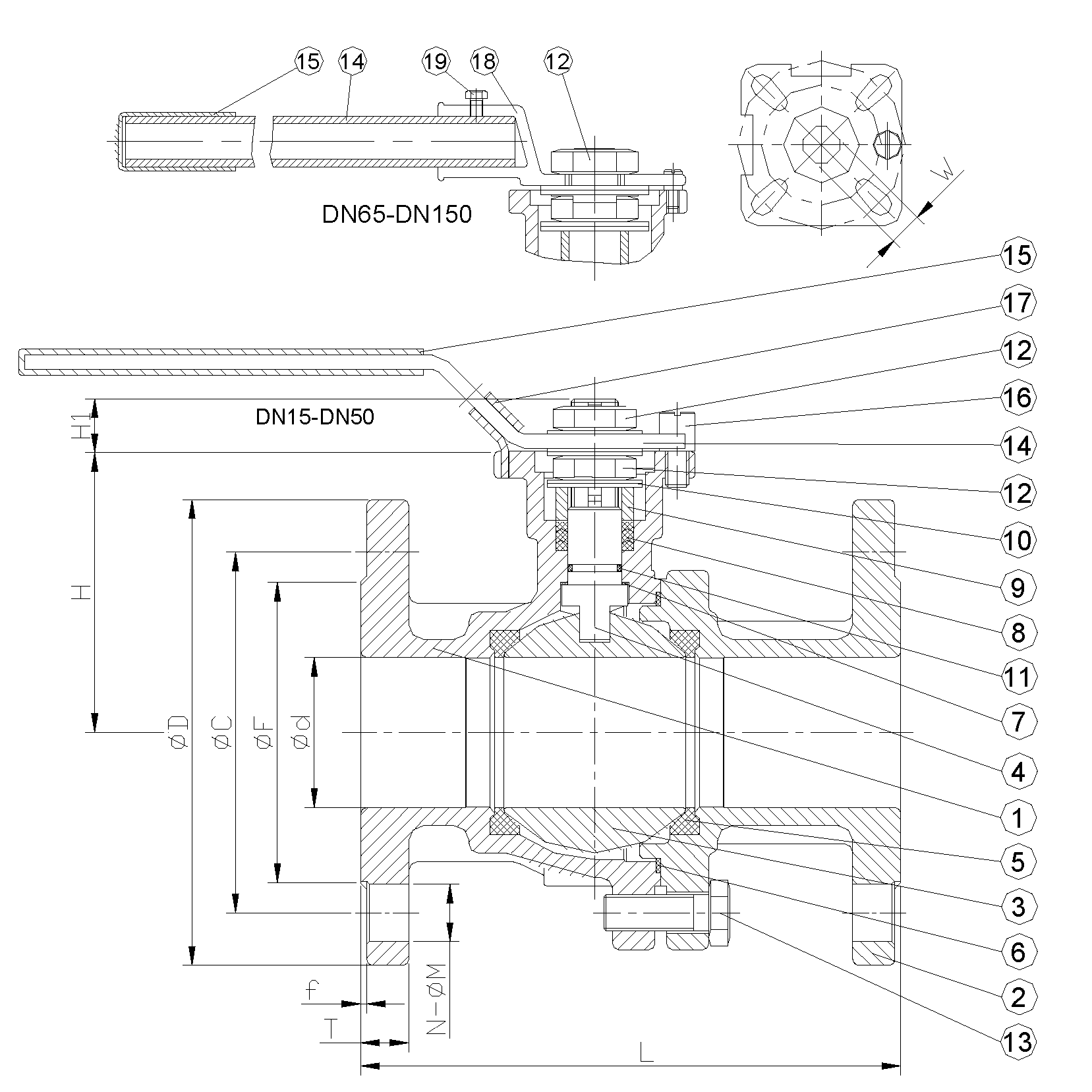

SIZE	d	D	C	F	T	f	M	N	L	H	H1	W	ISO-5211	TORQUE (Nm)
½″	15	89	60.5	35	11.1	1.6	16	4	108	55	9	9	F03/F04	14
¾″	20	98	70	43	11.1	1.6	16	4	117	66.5	11	9	F03/F04	18
1″	25	108	79.5	51	11.1	1.6	16	4	127	66.5	11	11	F04/F05	22
1¼″	32	117	89	64	12.7	1.6	16	4	140	74	11	11	F04/F05	25
1½″	40	127	98.5	73	14.3	1.6	16	4	165	85.5	15	14	F05/F07	29
2″	50	152	120.5	92	15.9	1.6	19	4	178	92.5	15	14	F05/F07	34
2½″	65	178	139.5	105	17.5	1.6	19	4	190	113	18	17	F07/F10	50
3″	80	190	152.5	127	19.1	1.6	19	4	203	124.5	18	17	F07/F10	75
4″	100	229	190.5	157	23.9	1.6	19	8	229	142.5	23	22	F10/F12	100
5″	125	254	216	186	23.9	1.6	22	8	356	182	28	27	F10/F12	160
6″	150	279	241.5	216	25.4	1.6	22	8	394	201	28	27	F10/F12	270
8″	200	343	298.5	270	28.6	1.6	22	8	457	259	35	36	F14	668

NOTE: 8” VALVE IS GEAR OP

No.	Part Name	Material
1	BODY	CF8M
2	CAP	CF8M
3	BALL	CF8M
4	STEM	SUS 316
5	SEAT	PTFE
6	GASKET	PTFE
7	THRUST WASHER	PTFE
8	PACKING	PTFE
9	GLAND RING	SUS 316
10	BELLEVILLED DISC	ANSI 301
11	O-RING	VITON
12	STEM NUT	SUS 304
13	STUD BOLT	SUS 304
14	HANDLE	SUS 304
15	HANDLE SLEEVE	PLASTIC
16	STOP PIN	SUS 304
17	LOCKING DEVICE	SUS 304
18	HANDLE HEAD	CF8
19	HANDLE BOLT	SUS 304

Applications

Design and manufacture per ANSI B16.34
Face-to-face dimensions per ANSI B16.10
Flange connection dimensions per ANSI B16.5
Testing per API 598
Lever-operated or gear-operated
Material: Stainless Steel 316 / A351 Gr CF8M
Mounting pad per ISO 5211
