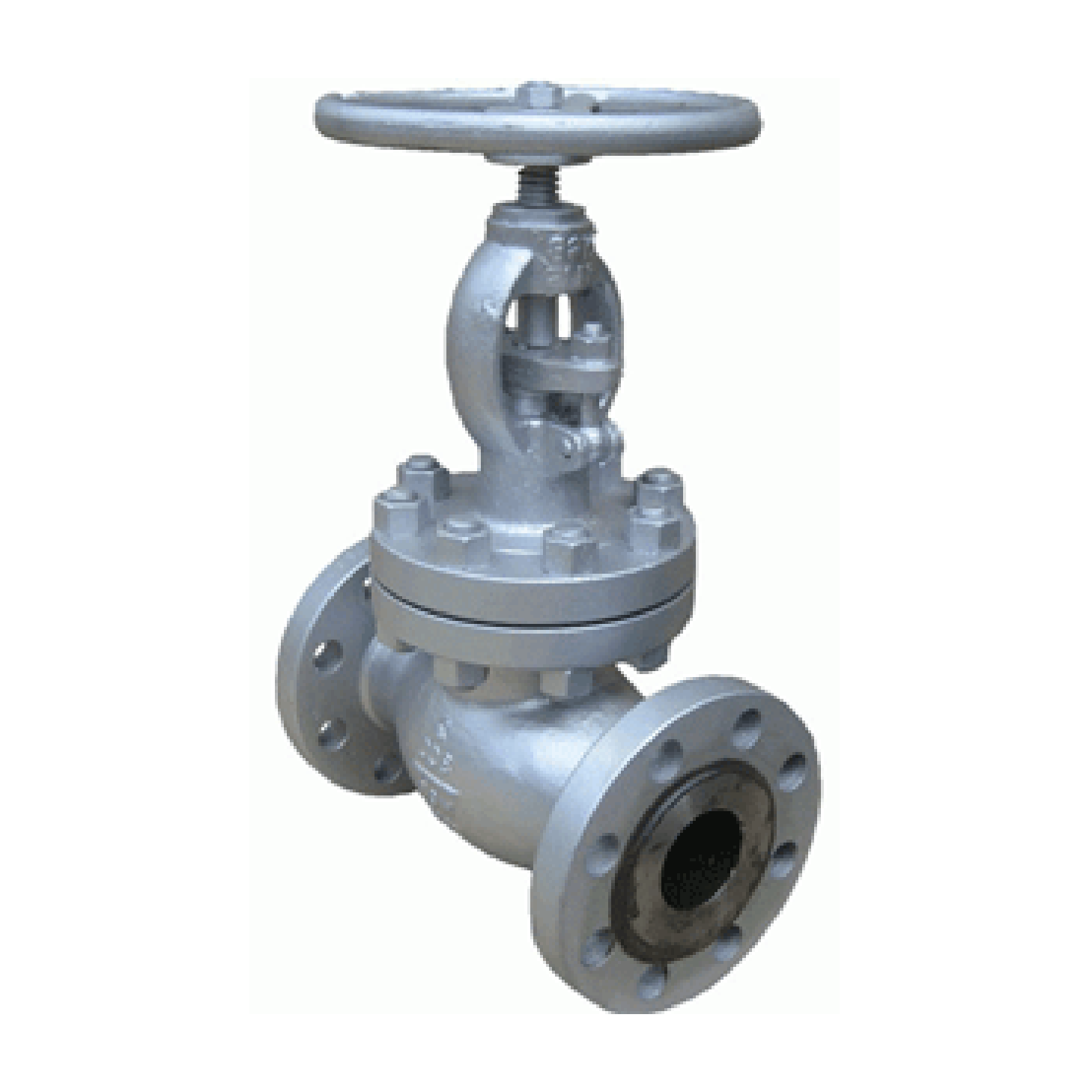

Cast Steel Globe Valve OS&Y Class 300 RF (HF Seats)
Cast Steel Globe Valve OS&Y Class 300 RF (HF Seats)
SKU:GLV-300-CS-015
Couldn't load pickup availability
Size Range: 15mm to 300mm Material: ASTM A216 WCB Cast Steel Body Stem: Stainless Steel Gasket & Packing: Graphite Flange Standard: ANSI B16.5 Class 300 RF Face-to-Face: ANSI B16.10
Share
Built for performance under higher pressure conditions, the Cast Steel Globe Valve OS&Y Class 300 RF delivers exceptional reliability, tight sealing, and long service life in demanding industrial environments.
Manufactured from ASTM A216 WCB cast steel, this valve offers superior mechanical strength and resistance to thermal stress. The Outside Screw & Yoke (OS&Y) design ensures clear visual indication of valve position, while the hard-faced (HF) seats provide excellent wear resistance for prolonged operation in high-pressure and high-temperature services.
Equipped with a stainless steel stem, graphite gaskets and packing, and ANSI B16.5 Class 300 RF flanges, this valve ensures reliable sealing, smooth operation, and ease of maintenance. Designed and manufactured in accordance with API 600 / API 6D, it meets the highest standards of quality and performance.
Ideal for use in oil & gas, petrochemical, power generation, and general industrial applications, where durability and safety are critical.
