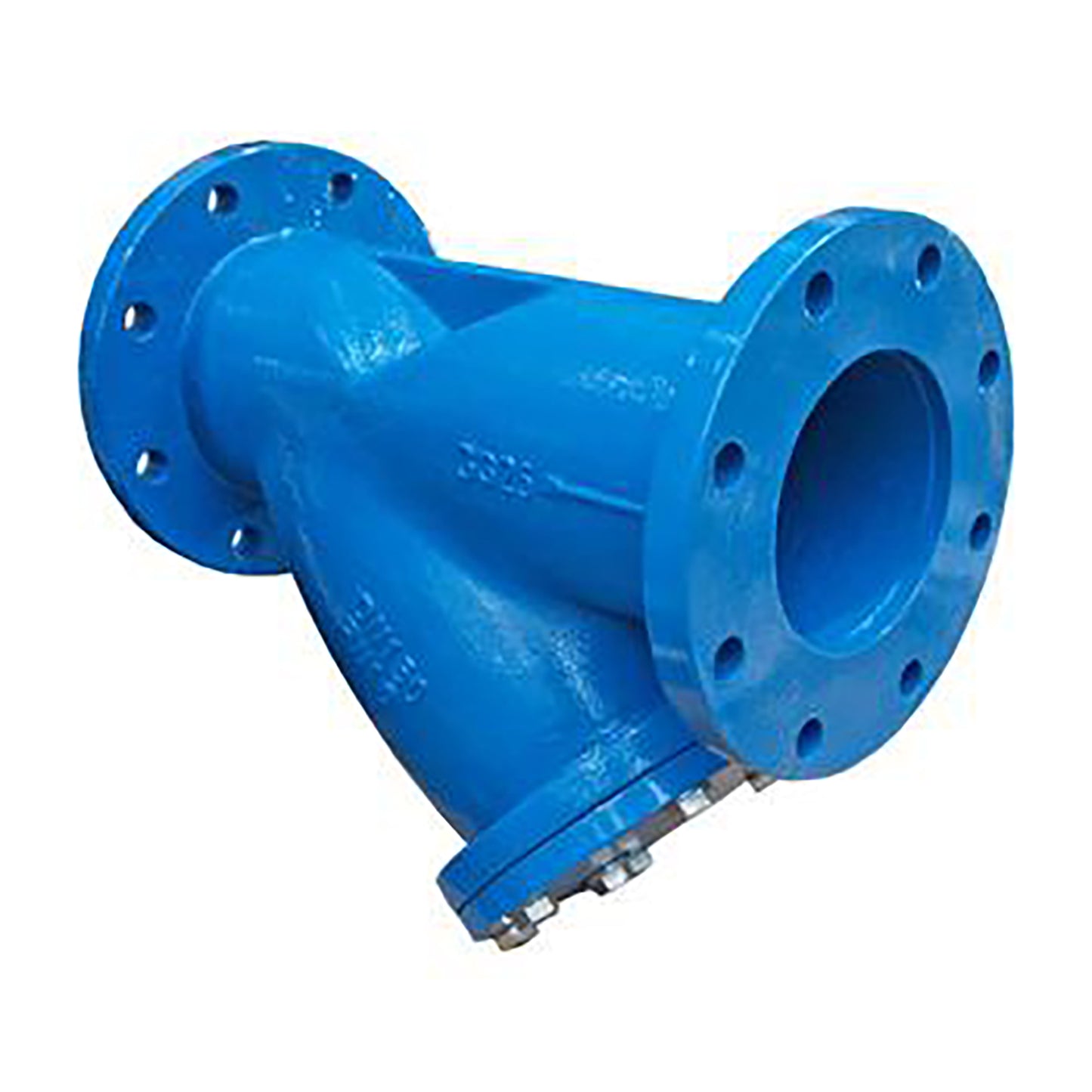

Cast Iron Y Strainer – Flanged Table D/E
Cast Iron Y Strainer – Flanged Table D/E
SKU:YS-CI-E-050
Couldn't load pickup availability
Size Range: 50mm to 600mm Body Material: Cast Iron Screen Material: Stainless Steel 304 Gasket: Graphite/316 Stainless Steel Bonnet Gasket Body Coating: Fusion Bonded Epoxy (FBE) – Blue, AS/NZS 4158 compliant Connection Type: Flanged Ends – BS10 Table D/E
Share

The Cast Iron Y Strainer – Flanged Table D/E is designed to remove solids and debris from liquids, gases, or steam in general industrial and water service applications. Manufactured from high-quality cast iron, it provides excellent strength and long service life at an economical cost.
The Y-type design allows efficient filtration with minimal pressure loss, while the stainless steel 304 screen ensures reliable performance and corrosion resistance. The FBE-coated body (AS/NZS 4158 standard) provides superior protection against corrosion, making it ideal for use in water and wastewater systems.
Equipped with a graphite/316 stainless bonnet gasket for enhanced sealing and stainless steel cover bolts, this Y strainer is built for durability and easy maintenance. The flanged ends are drilled to BS10 Table D/E standards, ensuring compatibility with common pipeline configurations.
