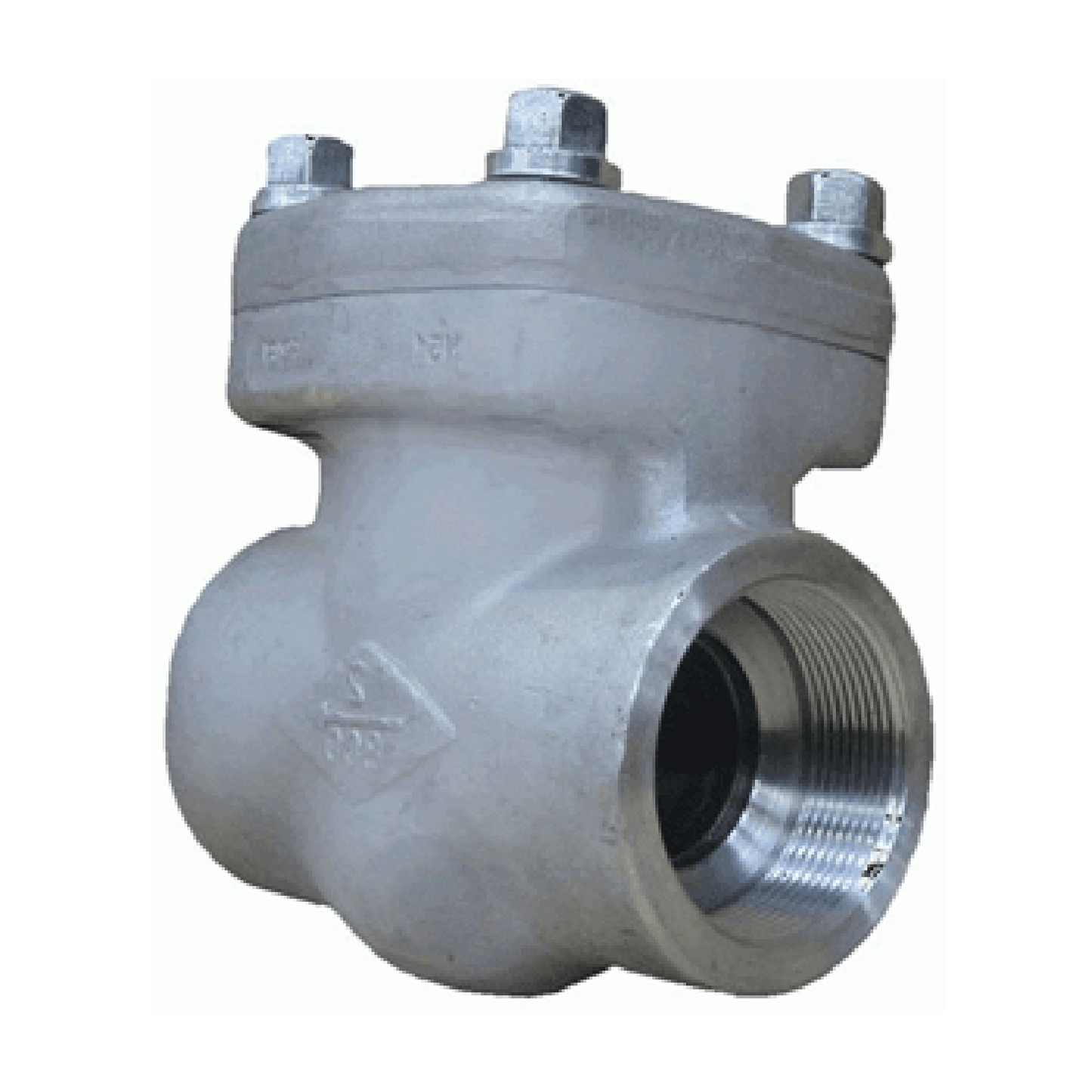

316L Stainless Steel Swing Check Valve – Class 800 NPT
316L Stainless Steel Swing Check Valve – Class 800 NPT
SKU:CV-SCV-800-SS-015
Couldn't load pickup availability
Size Range: 15mm to 50mm Body Material: ASTM A182 F316L Stainless Steel Pressure Rating: Class 800 Connection Type: NPT Threads to ASME B1.20.1 Seat Type: Hard-Faced Seats for extended service life
Share
The 316L Stainless Steel Swing Check Valve – Class 800 NPT is designed for dependable backflow prevention in high-pressure and high-temperature service. Constructed from ASTM A182 F316L stainless steel, this valve provides excellent resistance to corrosion, pitting, and chemical attack — ensuring long service life in demanding industrial environments.
Its swing-type disc allows smooth, low-resistance flow while preventing reverse flow automatically when line pressure drops. The hard-faced seats offer superior wear protection and long-term sealing integrity, even under continuous operation. A graphite gasket ensures reliable sealing performance in elevated temperatures and harsh media conditions.
Threaded to ASME B1.20.1 NPT standards, the valve provides precise, leak-tight connections suitable for compact piping systems where welding or flanged connections are not practical.
