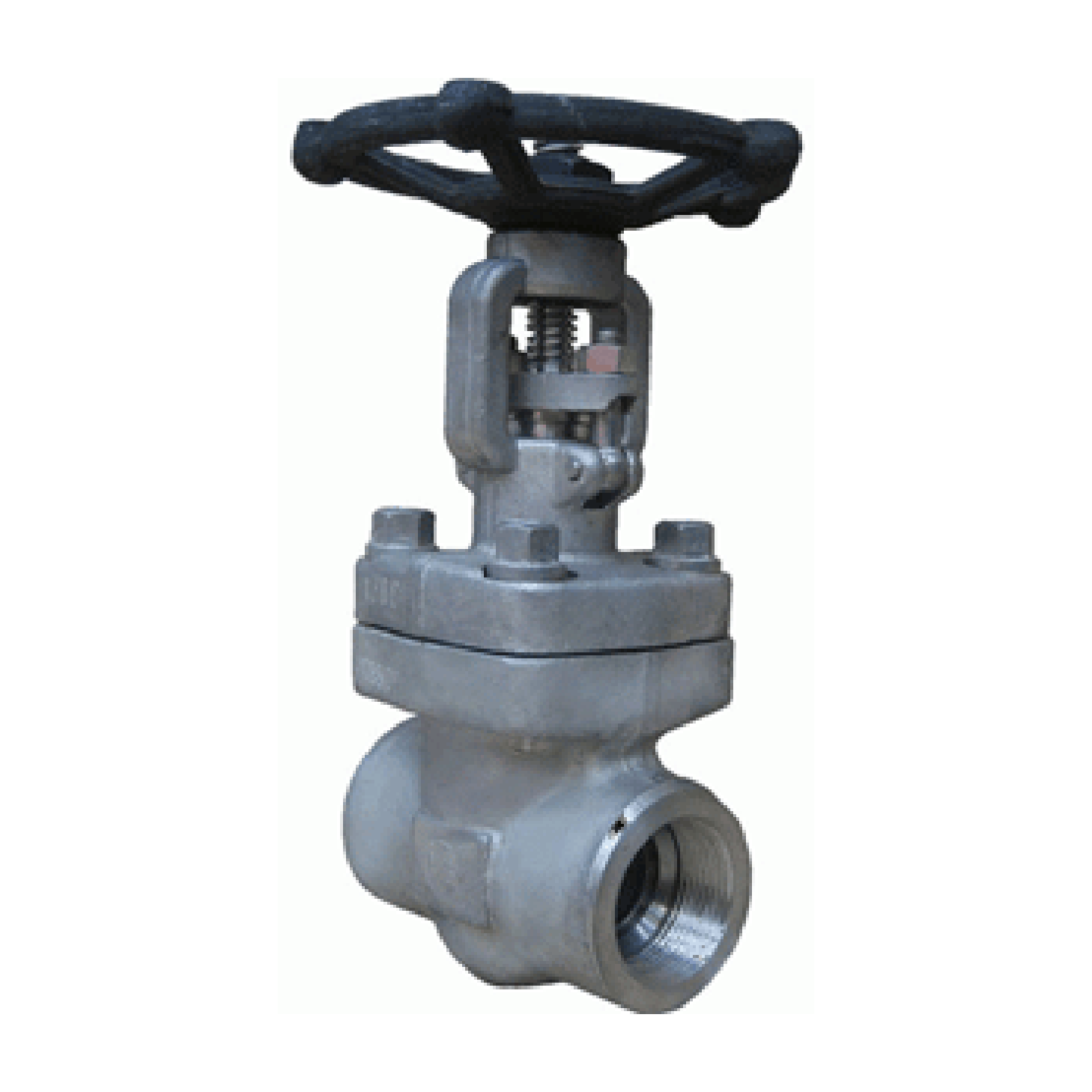

316L Stainless Steel Gate Valve Class 800 NPT (HF Seats)
316L Stainless Steel Gate Valve Class 800 NPT (HF Seats)
SKU:GAV-SS-800-015
Couldn't load pickup availability
Size Range: 15mm to 50mm Material: ASTM A182 F316L Forged Stainless Steel Body Seat: Hard Faced (HF) Stem: Stainless Steel Gasket & Packing: Graphite End Connections: NPT to ASME B1.20.1 / SW to ASME B16.11 Design & Manufacture Standard: API 602 Pressure Class: 800 Operation: Handwheel Operated
Share
The 316L Stainless Steel Gate Valve Class 800 NPT is designed for high-pressure applications where durability, corrosion resistance, and precise flow isolation are essential. Manufactured from ASTM A182 F316L forged stainless steel, this valve offers excellent mechanical strength and superior resistance to pitting and chemical corrosion, making it ideal for critical process and utility systems.
Featuring hard-faced (HF) seats for long-lasting sealing performance, this valve provides reliable operation in high-temperature and high-pressure environments. The stainless steel stem and graphite gaskets and packing ensure leak-tight performance and smooth operation over extended service life.
With NPT threaded ends to ASME B1.20.1 and socket weld ends to ASME B16.11, it offers flexibility for installation across various pipeline configurations. Designed and manufactured in accordance with API 602, this valve delivers dependable, consistent performance for use in oil & gas, petrochemical, power generation, and general industrial applications.
