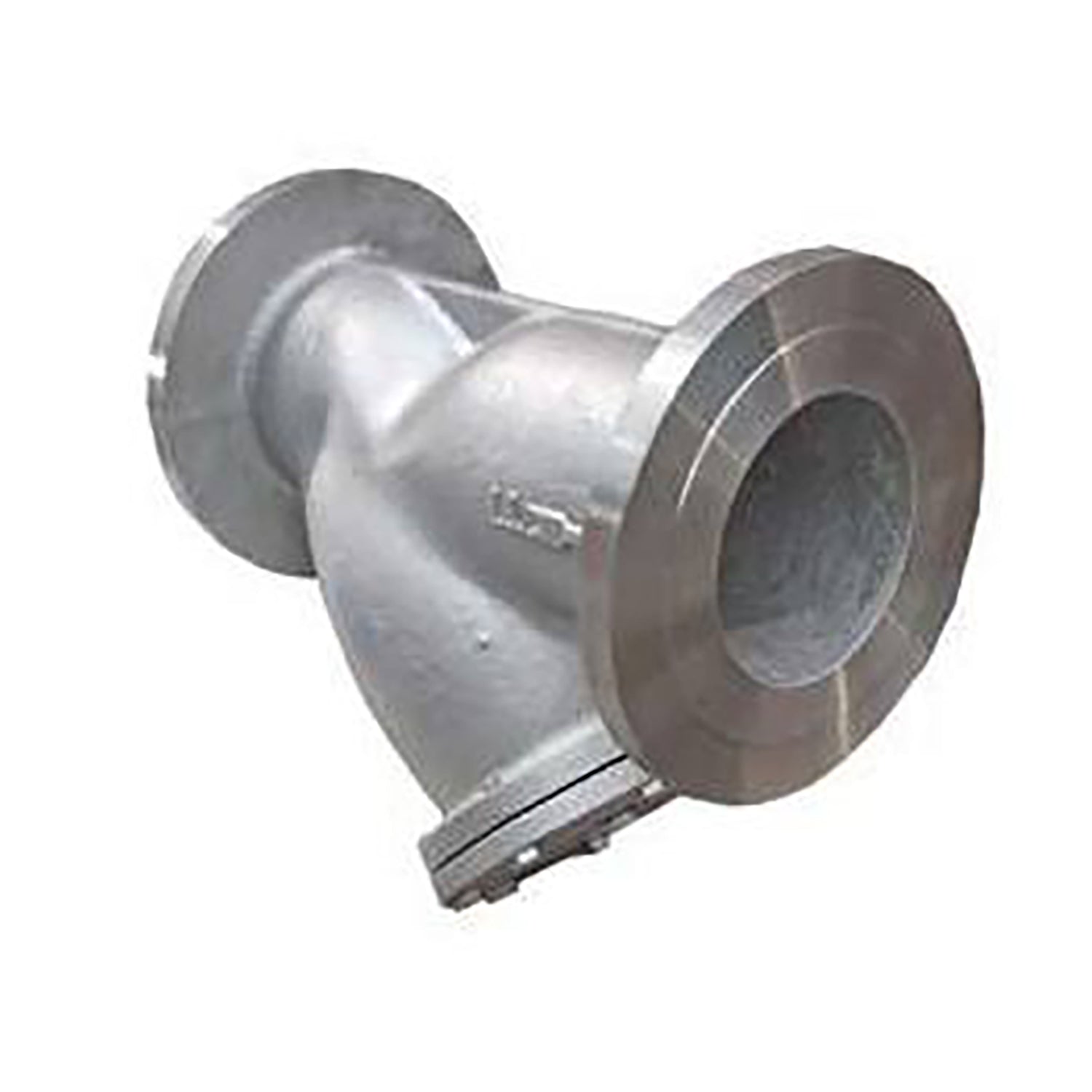

316 Stainless Steel Y Strainer – Flanged Class 150 with Drain Plug
316 Stainless Steel Y Strainer – Flanged Class 150 with Drain Plug
SKU:YS-316-150-015
Couldn't load pickup availability
Size Range: 15mm to 300mm Body Material: ASTM A351 CF8M (316 Stainless Steel) Gasket: PTFE Design Standard: ANSI B16.34 Testing: API 598 Face-to-Face: ANSI B16.10 Connection Type: Flanged Ends – ANSI B16.5 Class 150
Share
The 316 Stainless Steel Y Strainer – Flanged Class 150 is designed to protect pumps, valves, and other downstream equipment by efficiently removing solids and debris from process fluids. Manufactured from ASTM A351 CF8M (316 stainless steel), this strainer provides excellent corrosion resistance and long service life in a wide range of industrial and commercial applications.
Its Y-type design ensures minimal pressure drop and easy access for cleaning and maintenance. The integrated drain plug allows quick removal of accumulated debris without dismantling the strainer, reducing downtime and improving efficiency.
Precision-engineered and investment cast, the body is flanged to ANSI B16.5 Class 150 standards and dimensioned in accordance with ANSI B16.10, ensuring easy installation and compatibility with standard piping systems. Designed to ANSI B16.34 and tested per API 598, this Y strainer guarantees reliable performance and compliance with global quality standards.
