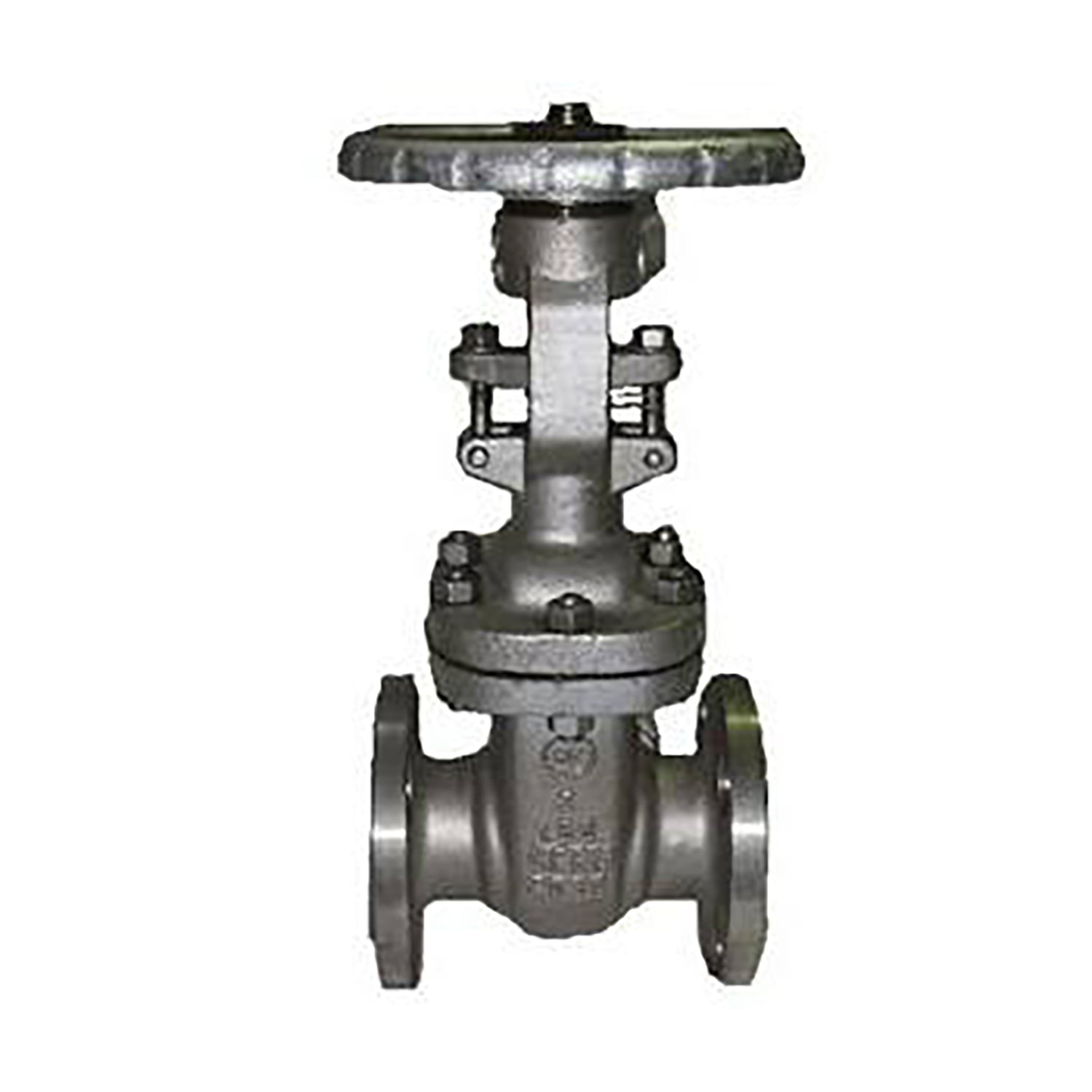

316 Stainless Steel Gate Valve OS&Y Flanged Class 150 (HF Seats)
316 Stainless Steel Gate Valve OS&Y Flanged Class 150 (HF Seats)
SKU:GAV-SS-150-015
Couldn't load pickup availability
Size Range: 15mm to 600mm Material: ASTM A351 CF8M Stainless Steel Body Seat: Hard Faced (HF) Stem: Stainless Steel Gasket & Packing: Graphite Design: Outside Screw & Yoke (OS&Y) Flange Standard: ANSI B16.5 Class 150 Face-to-Face: ANSI B16.10 Design & Manufacture Standard: API 600 / API 6D Operation: Handwheel Operated
Share
The 316 Stainless Steel Gate Valve OS&Y Class 150 is engineered for dependable isolation and long-term performance in demanding industrial, marine, and process applications. Manufactured from ASTM A351 CF8M stainless steel, it delivers excellent corrosion resistance, durability, and strength for use with water, oil, gas, and steam.
The Outside Screw & Yoke (OS&Y) design provides clear visual indication of valve position and allows easy access for maintenance. Hard-faced (HF) seats ensure superior wear resistance and extended service life, even in harsh operating conditions.
Fitted with a stainless steel stem, graphite gaskets and packing, and ANSI B16.5 Class 150 flanged ends, this valve ensures secure sealing and reliable performance. Designed and manufactured in accordance with API 600 / API 6D, it meets the highest industry standards for safety and quality.
Ideal for use across refineries, chemical plants, power generation, and general industrial systems where robust and corrosion-resistant isolation is essential.
