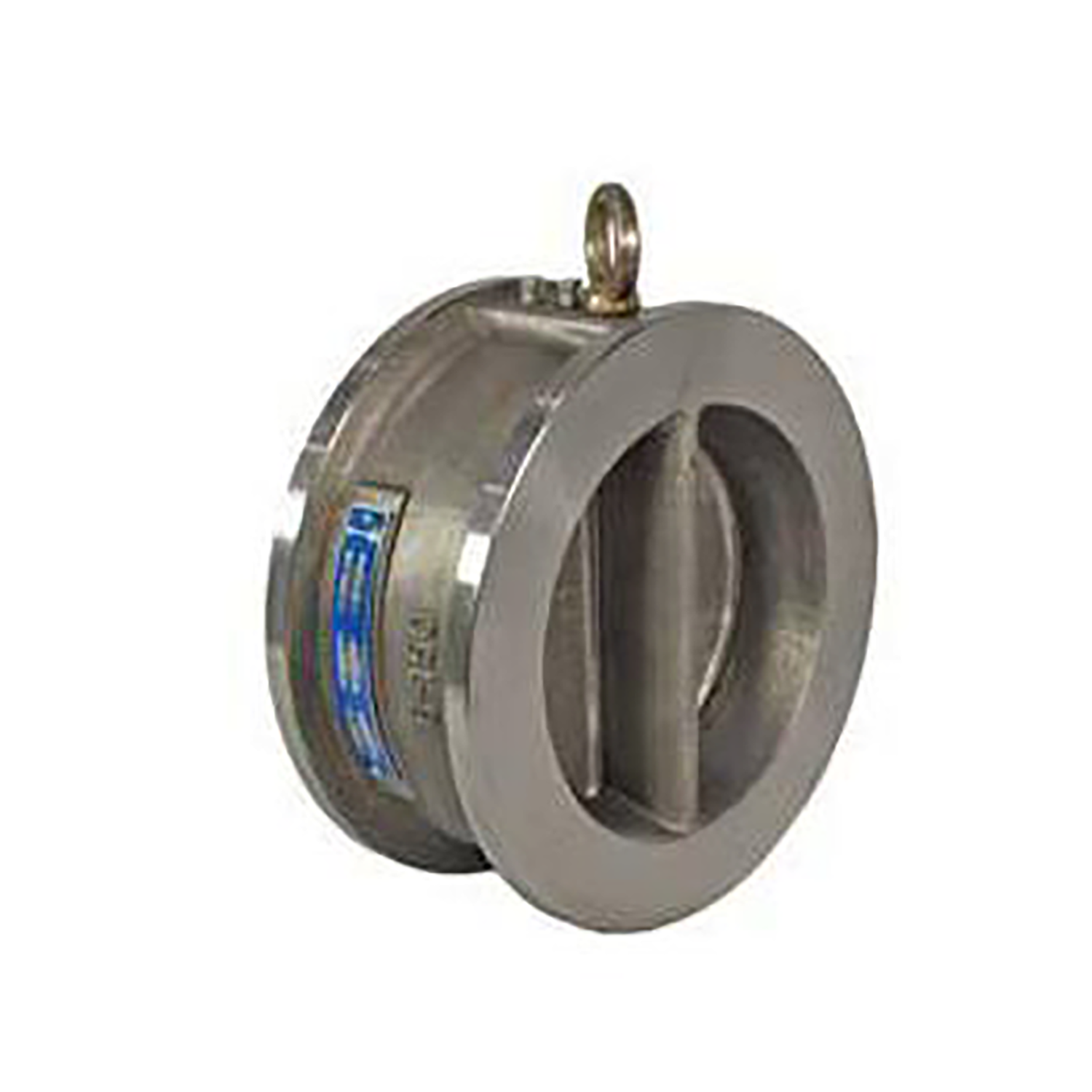

316 Stainless Steel Dual Plate Wafer Check Valve, ANSI Class 150
316 Stainless Steel Dual Plate Wafer Check Valve, ANSI Class 150
SKU:CV-DUO-316-040
Couldn't load pickup availability
Size Range: 40mm to 600mm Body Material: ASTM A351 CF8M (316 Stainless Steel) Design Type: Dual Plate Wafer Type, compact and lightweight Face-to-Face: API 594 compliant Flange Compatibility: Suits ANSI B16.5 Class 150 flanges Seats: Available in Viton or Metal seat options
Share
Compact, efficient, and built for reliable backflow prevention.
The 316 Stainless Steel Dual Plate Wafer Check Valve is a high-performance, space-saving solution engineered for dependable non-return operation in industrial and process systems. Designed to meet API 594 standards, this valve features a dual spring-loaded plate design that ensures quick closure, minimising water hammer and protecting pumps and pipelines from reverse flow.
Manufactured from ASTM A351 CF8M (316 stainless steel), the valve offers outstanding corrosion resistance and long service life in water, chemical, and marine environments. Its wafer-type body fits easily between flanges to ANSI B16.5 Class 150 dimensions, making it ideal for both new installations and retrofits where space and weight are critical.
