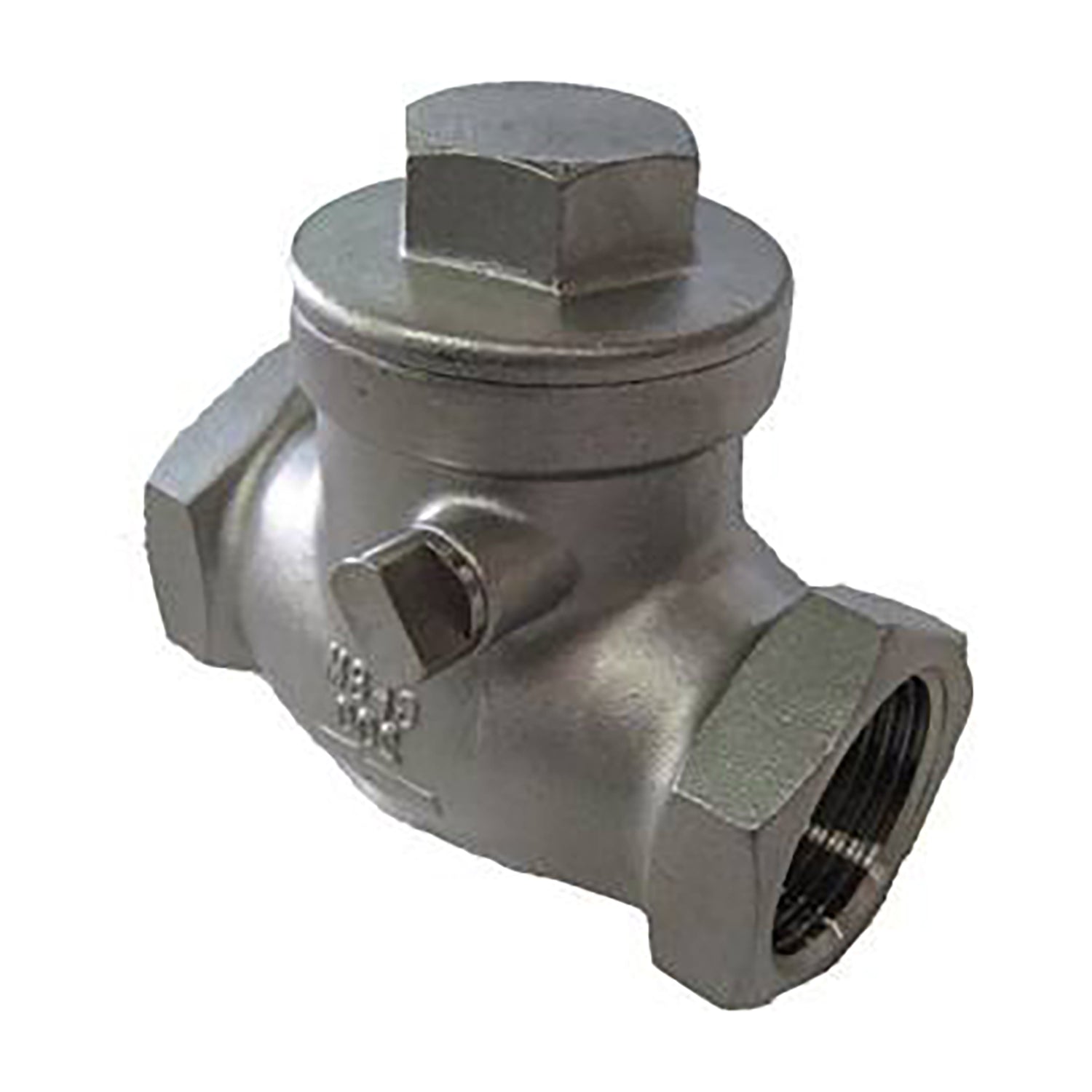

316 SS Swing Check Valve, 200 PSI BSP
316 SS Swing Check Valve, 200 PSI BSP
SKU:CV-SCV-BSP-015
Couldn't load pickup availability
Size Range: 15mm to 80mm Body Material: ASTM A351 CF8M (316 Stainless Steel) Seat: Integral Stainless Steel Seat for reliable sealing Disc Type: Swing Type Disc for smooth, non-return operation Cap Design: Screwed Cap for easy access and maintenance Connection Type: BSP Female Threaded Ends Design: Full Bore for minimal pressure loss Pressure Rating: 200 PSI W.O.G. (Water, Oil, Gas)
Share
The 316 Stainless Steel Swing Check Valve is a robust, high-performance solution designed to prevent backflow and protect equipment in demanding flow systems. Constructed from ASTM A351 CF8M (316 stainless steel), this valve delivers exceptional resistance to corrosion, pitting, and chemical attack — making it the ideal choice for water, air, oil, and general industrial applications.
With a full-bore flow path and swing type disc, the valve ensures minimal pressure drop and smooth operation, maintaining consistent flow efficiency. Its integral seat provides tight sealing performance, while the screwed cap design allows for easy maintenance and inspection.
Precision BSP threaded ends make installation quick and secure, compatible with standard pipeline fittings. Rated to 200 PSI W.O.G., this valve offers dependable operation under both low and moderate pressures, delivering reliability you can trust in every cycle.
